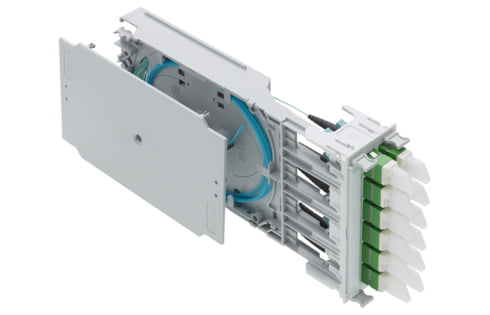

FiberModul HD, splice, 6xLC-Duplex OM4, PC, ceramic, Bm/3 (R515075)

Designed for 19" 1U HD patch panel.

Артикул: R515075 Категорія: Misc

Slide-in unit, splice trayradius 35 mm, fastening material, labeling strips and installation instructions
Plastic front panel equipped with adapters, pigtails inserted and ready for splicing

Mechanical Data

Technical Data

Conductor type FO	semi-tight buffer, dry
Fiber type	Multimode (MM)
Fiber class	OM4
Fiber diameter	G50 / 125 µm
Number of connectors (A)	6
Connector type (A)	LC-Duplex
Connector color (A)	heather violet
Polishing plug (A)	PC
Protection class IP (A)	IP 20
Return loss grade RL (A)	3
Attenuation grade IL (A)	Bm
Rack mounting version	slide-in unit
Adapter fastening method	end cap snap-in
Assembly	fully populated
Capacity (ports)	6
Sleeve material	ceramic
Version	splice
Standard	Adapter and connector in acc. with IEC 61754-20 UL Listed Pigtails in acc. with color code DIN VDE 0888
