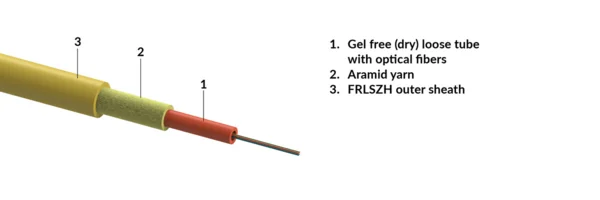

Name: FiTH mini loose tube cable, indoor-use, no armour, FRLSZH sheath - yellow, Dca, 01x02-fibers G657.A2 (R873755) - ДП "Сінергія"
SKU: R873755

Environmental Characteristics

Operation temperature	-10 °C to +60 °C / +14 °F to +140 °F
Temperature cycling acceptance criteria	Δα ≤ 0,05 dB
Temperature cycling	-10 °C +60 °C / +14 °F +140 °F
Temperature cycling test method	IEC 60794-1-22:F1
Transport / store temperature	-10 °C to +60 °C / +14 °F to +140 °F

Mechanical Data

Crush resistance - short term	1000 N/100mm
Expected lifetime	min. 30 years
Tensile performance - during installation	200 N (5 min)
Tensile performance - during installation acceptance criteria	Δα ≤ 0,05 dB
Tensile Performance during Installation TestMethod	IEC 60794-1-21:E1
Repeated bending acceptance criteria	no damage
Kink	d=4 x cable diameter
Repeated bending test method	IEC 60794-1-21:E6
Kink acceptance criteria	no kink
Repeated bending	R=20 x cable diameter, 25 cycles
Cable bend - acceptance criteria	Δα ≤ 0,05 dB after test, no damage
Kink test method	IEC 60794-1-21:E10
Impact resistance acceptance criteria	Δα ≤ 0,05 dB after test, no damage
Impact resistance	3 Nm, 3 impacts, d=20 mm, R=12.5 mm
Crush resistance - long term acceptance criteria	Δα ≤ 0,05 dB prior release, no damage
Cable weight	5.5 kg/km / 4 lbs/1000ft

Technical Data

Fiber type	G.657.A2
Cable type	FiTH Cable
Jacket material	FRLSZH
Fiber Count	2
CPR classification	Dca
Flammability - vertical single cable test method	IEC 60332-1-2
Halogen free, acid gases	Pass
Halogen free, Acid gases test method	IEC 60754-2
Fiber color coding	1.–4.: red, green, blue, yellow
RoHS	conform
Smoke density	Pass
Smoke density test method	IEC 61034-2
Warranty	R&Mfreenet
Cable version	Gel-free installation cable
Application	indoor use
Loose tube diameter [mm]	1.15
