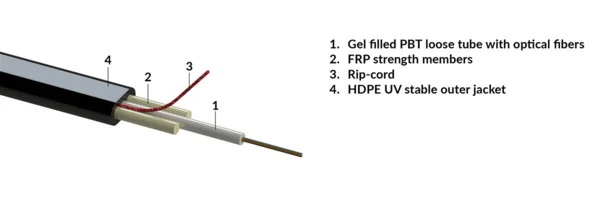

Flat self-supporting LT cable, ADSS-aerial, outdoor-use, no armour, HDPE sheath, black, 01x06-fibers G657.A1 (R857700)

Flat self-supporting LT cable, ADSS-aerial, outdoor-use, no armour, HDPE sheath, black, 01x06-fibers G657.A1 (R857700)

Артикул: R857700 Категорія:
Environmental Characteristics

Operation temperature

-40 °C to +70 °C / -40 °F to +158 °F

Temperature cycling acceptance criteria

Δα ≤ 0,05 dB

Temperature cycling

-40 °C +70 °C / -40 °F +158 °F

Temperature cycling - reversible acceptance criteria

Δα ≤ 0,15 dB, reversible

Temperature cycling - reversible test method

IEC 60794-1-22:F1

Temperature cycling test method

IEC 60794-1-22:F1

Transport / store temperature

-40 °C to +70 °C / -40 °F to +158 °F

Mechanical Data

Crush resistance - short term

4000 N/100mm

Expected lifetime

min. 30 years

Tensile performance - during installation acceptance criteria

Δα ≤ 0,05 dB after test

Repeated bending acceptance criteria

no damage

Repeated bending test method

IEC 60794-1-21:E6

Repeated bending

R=150 mm, 25 cycles

Cable bend - acceptance criteria

Δα ≤ 0,05 dB after test, no damage

Torsion

L=2 m, rotation angle ±180°,5 cycles

Torsion acceptance criteria

no damage

Impact resistance acceptance criteria

Δα ≤ 0,05 dB after test, no damage

Torsion test method

EN 60794-1-21:E7

Impact resistance

10 Nm, 3 impacts, d=20 mm, R=300 mm

Crush resistance - long term acceptance criteria

Δα ≤ 0,05 dB prior release, no damage

Tensile performance - in service acceptance criteria

Δα ≤ 0,15 dB

Tensile performance - in service test method

IEC 60794-1-21:E1

Tensile performance - in service

1600 N (max. allow-able tension)

Cable weight

38.0 kg/km / 25 lbs/1000ft

Technical Data

Fiber type

G.657.A1

Cable type

Flat self-supporting LT cable

Jacket material

UV stable HDPE

Cable overall diameter

8.0 x 4.0 mm

Fiber Count

6

CPR classification

Fca

Fiber color coding

1.-12.: red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink

Sheath marking

Ink-Jet, white

Cable version

ADSS aerial

Application

outdoor use

Loose tube diameter [mm]

1.9
