FM Global Outlet 88x88, 2xSC-Duplex, pure white (R316072)

Name: FM Global Outlet 88x88, 2xSC-Duplex, pure white (R316072) - ДП "Сінергія"
SKU: R316072

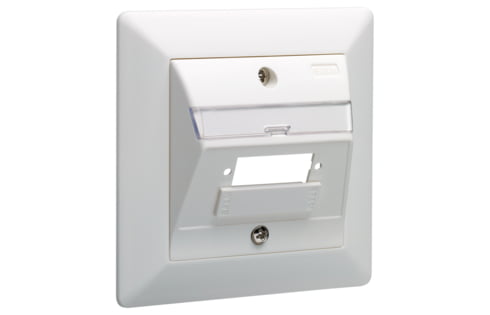

FM Global Outlet 88x88, 2xSC-Duplex, pure white (R316072)

Suitable for flush-mounted (FM) and duct-mounted (DM) installations. For use with cover frames and duct covers of Ø 70 mm in diameter or 70x70 mm cutouts. Suitable for backboxes and floorbox module holders of Ø 60 mm mounting tracks. Recommended depth for backboxes and floorboxes min. 70 mm.

Plastic: PC + ABS, halogen-free.

Артикул: R316072 Категорія: Misc

Scope of supply

Cover frame 88x88 mm
Faceplate 60x60 mm with SC-Duplex cutout
M3x12 screws
Blind cover (when used as a 1-port outlet)
Mounting plate, steel
Label strips, blank

Mechanical Data

Dimensions	88.0 mm x 88.0 mm / 3.465 in x 3.465 in (W x H)
Color Code RAL	9010 Pure white
Material	plastic: PC + ABS

Technical Data

Number of connectors (A)	2
Connector type (A)	SC-Duplex
Application area	flush-mounting (FM)
Assembly	empty
Outlet type	outlet
Standard	UL Listed
