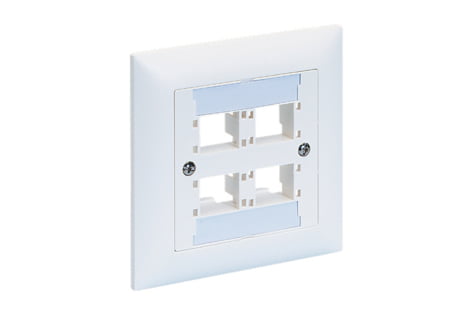

FM Global Outlet 88x88, 4x1-Port, pure white (R305150)

Name: FM Global Outlet 88x88, 4x1-Port, pure white (R305150) - ДП "Сінергія"
SKU: R305150

FM Global Outlet 88x88, 4x1-Port, pure white (R305150)

Suitable for flush-mounted (FM) and duct-mounted (DM) installations. For use with cover frames and duct covers of Ø 70 mm in diameter or 70x70 mm cutouts. Suitable for backboxes and floorbox module holders of Ø 60 mm mounting tracks.

Recommended depth for backboxes and floorboxes min. 70 mm.

Plastic: PC + ABS, halogen-free.

Артикул: R305150 Категорія: Misc

Scope of supply

Cover frame 88x88 mm, purewhite
4-part faceplate 60x60 mm
M3x12 screws
Mounting plate, steel
Labeling strip, blank

Environmental Characteristics

Operation temperature

-10 °C to +80 °C / +14 °F to +176 °F

Mechanical Data

Dimensions	88.0 mm x 88.0 mm / 3.465 in x 3.465 in (W x H)
Color Code RAL	9010 Pure white
Material	plastic: PC + ASA

Technical Data

Application area	flush-mounting (FM)
Assembly	empty
Outlet type	outlet
Capacity (ports)	4 x 1
Standard	Halogen-free, in accordance with DIN/VDE 0472/815

This outlet is designed for flush installationsand duct-mounting, it includes a mounting plate with a mounting track of 60 mm, a cover frame of 88 x 88 mm with labeling field anda module holder for 4 individual RJ45 modules. Color: white (RAL 9010). Halogen-free in acc. with DIN/VDE 0472/815. Designed to accommodate the R&M security and the R&M environment system. The 3-level protection concept comprises the options color coding,mechanical-visual coding, and the locking of individual ports.
