FO Field LC, Grade Cf, APC, green, G652.D fiber stub, 250µm fibers up to 0.9mm fibers (R846319)

FO Field LC, Grade Cf, APC, green, G652.D fiber stub, 250µm fibers up to 0.9mm fibers (R846319)

FO Field LC, Grade Cf, APC, green, G652.D fiber stub, 250µm fibers up to 0.9mm fibers (R846319)

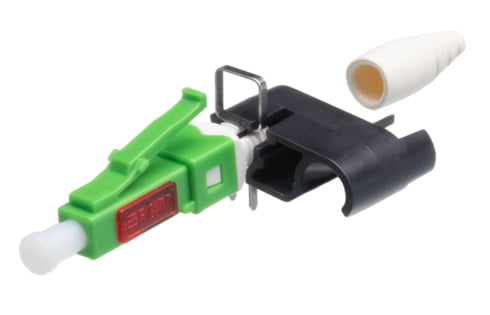

Field-terminable LC / APC connector, Grade Cf/1, individual packaged incl. installation instructions.

Color green, pigtail boot white.

Артикул: R846319 Категорія:
Environmental Characteristics

Operation temperature

10 °C to 60 °C / +50 °F to +140 °F

Technical Data

Connector type (A)

LC

Connector color (A)

green

Polishing plug (A)

APC 8°

Attenuation grade IL (A)

C

Connector class

connector

Standard

UL Listed

according to IEC 61754-20

Field-terminable connector, LC APC, Grade Cf/1,in compliance with IEC 61754-20 (LC) and EN 50377-17-1.

Connector housing made of PBT/UL-94 V-0, green, (singlemode APC), extended unlocking lever for optimum unlocking, fiber stub with 8° cleaved fiber, red semi-transparent push button for fiberfixation and function testing.

Інструкції з встановлення

Завантажити
