| Operation temperature |
-20 °C to +70 °C / -4 °F to +158 °F |
| Water penetration |
L = 3 m, h = 1 m, 24 h |
| Water penetration test method |
IEC 60794-1-22:F5B |
| Water penetration acceptance criteria |
no water leakage |
| Temperature cycling acceptance criteria |
Δα ≤ 0,05 dB |
| Temperature cycling |
-20 °C +70 °C / -4 °F +158 °F |
| Temperature cycling - reversible acceptance criteria |
Δα ≤ 0,15 dB, reversible |
| Temperature cycling - reversible test method |
IEC 60794-1-22:F1 |
| Temperature cycling test method |
IEC 60794-1-22:F1 |
| Temperature cycling - reversible |
-25 °C +70 °C / -13 °F +158 °F |
| Transport / store temperature |
-25 °C to +70 °C / -13 °F to +158 °F |
| Crush resistance - short term |
4000 N/100mm |
| Tensile performance - during installation |
2000 N |
| Tensile performance - during installation acceptance criteria |
Δα ≤ 0,05 dB after test |
| Tensile Performance during Installation TestMethod |
IEC 60794-1-21:E1 |
| Repeated bending acceptance criteria |
no damage |
| Repeated bending test method |
IEC 60794-1-21:E6 |
| Repeated bending |
R=10 x cable diameter, 25 cycles, m = 4Kg |
| Cable bend - acceptance criteria |
Δα ≤ 0,05 dB after test, no damage |
| Torsion |
L = 1 m, rotation angle ±180°, 10 cycles |
| Torsion acceptance criteria |
no damage |
| Impact resistance acceptance criteria |
Δα ≤ 0,05 dB after test, no damage |
| Torsion test method |
IEC 60794-1-21:E7 |
| Impact resistance |
10 Nm, 3 impacts, d=20 mm, R=300 mm |
| Crush resistance - long term acceptance criteria |
Δα ≤ 0,05 dB prior release, no damage |
| Tensile performance - in service acceptance criteria |
Δα ≤ 0,05 dB |
| Tensile performance - in service test method |
IEC 60794-1-21:E1 |
| Tensile performance - in service |
1000 N |
| Cable weight |
32.0 kg/km / 21 lbs/1000ft |
| Fiber type |
OM3 |

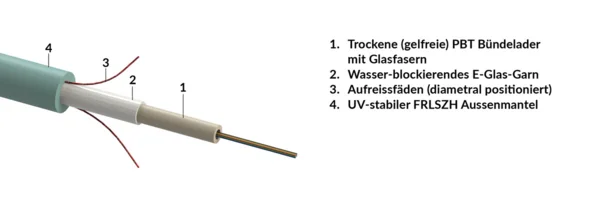

| Cable type |
gel-free, rodent protected, universal duct cable |
| Jacket material |
UV stable FRLSZH |
| Fiber Count |
4 |
| CPR classification |
Cca |
| Armour |
Rodent protection |
| Flammability - vertical single cable test method |
IEC 60332-1-2 |
| Halogen free, acid gases |
Pass |
| Halogen free, Acid gases test method |
IEC 60754-2 |
| Minimum bending radius |
no tension - 10 x cable diameter |
| Fiber color coding |
1.-12.: red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink |
| RoHS |
conform |
| Smoke density |
Pass |
| Smoke density test method |
IEC 61034-2 |
| Warranty |
R&Mfreenet |
| Cable version |
gel-free central loose tube |
| Application |
universal use |
| Loose tube diameter [mm] |
2.8 |
