Name: Gel-free stranded loose tube cable, universal-use, imp. rodent protection, FRLSZH sheath - yellow, Cca, 12x12-fibers G657.A1 (R873734) - ДП "Сінергія"
SKU: R873734

Environmental Characteristics

Operation temperature	-40 °C to +70 °C / -40 °F to +158 °F
Water penetration	L = 3 m, h = 1 m, 24 h
Water penetration test method	IEC 60794-1-22 F5B
Water penetration acceptance criteria	no water leakage
Temperature cycling acceptance criteria	Δα ≤ 0,05 dB
Temperature cycling	-40 °C +70 °C / -40 °F +158 °F
Temperature cycling test method	IEC 60794-1-22:F1
Transport / store temperature	-40 °C to +70 °C / -40 °F to +158 °F

Mechanical Data

Crush resistance - short term	4000 N/100mm
Expected lifetime	min. 30 years
Tensile performance - during installation	6000 N
Tensile performance - during installation acceptance criteria	Δα ≤ 0,05 dB after test
Tensile Performance during Installation TestMethod	IEC 60794-1-21:E1A
Repeated bending acceptance criteria	no damage
Repeated bending test method	IEC 60794-1-21:E6
Repeated bending	R=20 x cable diameter, 25 cycles
Cable bend - acceptance criteria	Δα ≤ 0,05 dB after test, no damage
Torsion	L = 1 m, rotation angle ±180°, 10 cycles
Torsion acceptance criteria	no damage
Impact resistance acceptance criteria	Δα ≤ 0,05 dB after test, no damage
Torsion test method	IEC 60794-1-21:E7
Impact resistance	10 Nm, 3 impacts, d=20 mm, R=300 mm
Crush resistance - long term acceptance criteria	Δα ≤ 0,05 dB prior release, no damage
Tensile performance - in service acceptance criteria	Δα ≤ 0,05 dB
Tensile performance - in service test method	IEC 60794-1-21:E1A
Tensile performance - in service	3000 N
Cable weight	240.0 kg/km / 161 lbs/1000ft

Technical Data

Fiber type	G.657.A1

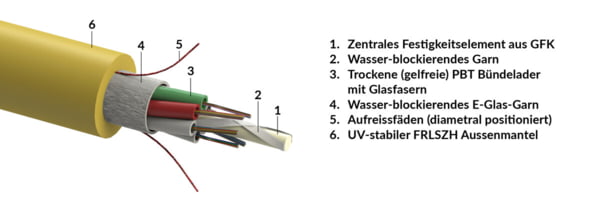

Cable type	gel-free, rodent protected, universal duct cable
Jacket material	UV stable FRLSZH
CPR classification	Cca
Armour	Rodent protection
Flammability - vertical cable bundle test method	IEC 60332-3-22
Flammability - vertical single cable test method	IEC 60332-1-2
Halogen free, acid gases	Pass
Halogen free, Acid gases test method	IEC 60754-2
Minimum bending radius	no tension - 10 x cable diameter
Fiber color coding	1.-12.: red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink
RoHS	conform
Sheath marking	Ink-Jet, black
Smoke density	Pass
Smoke density test method	IEC 61034-1, IEC 61034-2
Warranty	R&Mfreenet
FRP/coat. CSM nominal thickness [mm]	2.8 / 6.7
Cable version	gel-free multi loose tube
Application	universal use
Loose tube diameter [mm]	2.3
