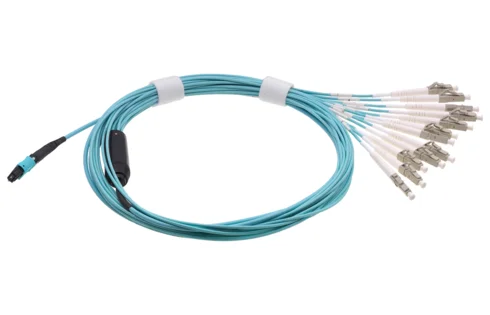

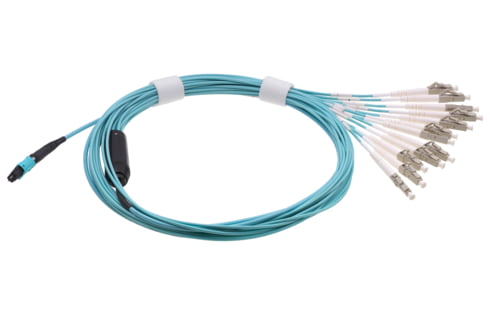

Harness Cable, 12fibers, MTP12-female PC - LC PC 12x, OM3, OFNP, 30 m (R804146)

Harness Cable, 12fibers, MTP12-female PC - LC PC 12x, OM3, OFNP, 30 m (R804146)

Harness Cable, 12fibers, MTP12-female PC - LC PC 12x, OM3, OFNP, 30 m (R804146)

Fitted with MTP12-female PC and 12 LC PC connector.

Connector color MTP: black.

Frame color MTP: turquoise.

Connector color LC: beige.

Fiber: MM G50/125 (OM3).

Cable: turquoise.

Артикул: R804146 Категорія:

Scope of Supply

  • Cable terminated with connectors

  • Including pulling eye

Technical Data

DESCRIPTIONVALUE/VALUE RANGE
Standard / norm

Geometrical specifications of MPO/MTP connectors acc. to IEC 61754-7

Geometrical specifications: LC connector acc. to IEC 61754-20

Protection class IP

IP 20

Connector class

connector

Protection class IP (A)

IP 20

Number of connectors (A)1
Protection class IP (B)

IP 20

Number of connectors (B)12
Cable type

Harness cable

Jacket material

OFNP

Cable jacket characteristics

Cable, metal-free

Zero-halogen

Connector type (A)

MTP12-female

Polishing plug (A)

PC

Attenuation grade IL (A)Cm
Return loss grade RL (A)4
Connector color (A)

black

Lever- / frame-coding (A)

Color

Color (A1)

turquoise/aqua

Connector type (B)

LC

Polishing plug (B)

PC

Attenuation grade IL (B)Bm
Return loss grade RL (B)3
Connector color (B)

beige

Lever- / frame-coding (B)

Color

Lever color (B)

beige

Fiber type

multimode (MM)

Fiber class

OM3

Fiber Count12
Fiber diameter

G50 / 125 µm

Mechanical Data

DESCRIPTIONVALUE/VALUE RANGE
Cable length30.0 m / 98 ft
Color

turquoise/aqua
