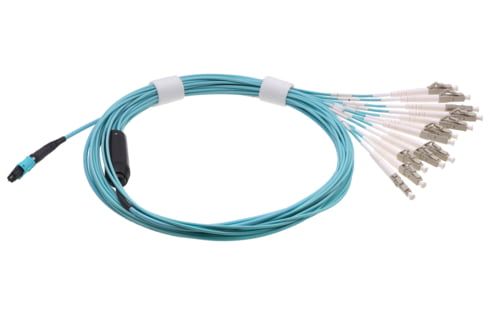

Fitted with MTP12-female PC and 12 LC PC connector.
Connector color MTP: black.
Frame color MTP: turquoise.
Connector color LC: beige.
Fiber: MM G50/125 (OM4).
Cable: turquoise.
Cable terminated with connectors
Including pulling eye
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm |
Geometrical specifications of MPO/MTP connectors acc. to IEC 61754-7 Geometrical specifications: LC connector acc. to IEC 61754-20 |
| Protection class IP |
IP 20 |
| Connector class |
connector |
| Protection class IP (A) |
IP 20 |
| Number of connectors (A) | 1 |
| Protection class IP (B) |
IP 20 |
| Number of connectors (B) | 12 |
| Cable type |
Harness cable |
| Jacket material |
LSZH |
| Cable jacket characteristics |
Cable, metal-free Zero-halogen |
| Connector type (A) |
MTP12-female |
| Polishing plug (A) |
PC |
| Attenuation grade IL (A) | Cm |
| Return loss grade RL (A) | 4 |
| Connector color (A) |
black |
| Lever- / frame-coding (A) |
Color |
| Color (A1) |
turquoise/aqua |
| Connector type (B) |
LC |
| Polishing plug (B) |
PC |
| Attenuation grade IL (B) | Bm |
| Return loss grade RL (B) | 3 |
| Connector color (B) |
beige |
| Lever- / frame-coding (B) |
Color |
| Lever color (B) |
beige |
| Fiber type |
multimode (MM) |
| Fiber class |
OM4 |
| Fiber Count | 12 |
| Fiber diameter |
G50 / 125 µm |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 30.0 m / 98 ft |
| Color |
turquoise/aqua |
