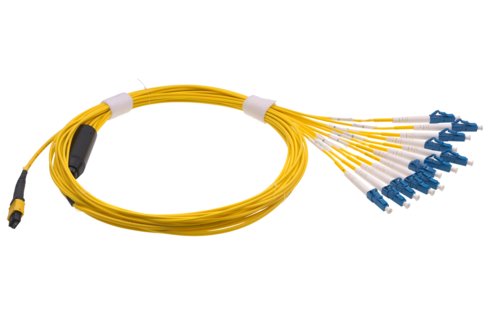

Fitted with MTP12-male APC and 12 LC PC connector.
Connector color MTP: black.
Frame color MTP: yellow.
Connector color LC: blue.
Fiber: SM E9/125 G.652.D/G.657.A1 (OS1, OS2).
Cable: yellow.
Cable terminated with connectors
Including pulling eye
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm |
Geometrical specifications of MPO/MTP connectors acc. to IEC 61754-7 Geometrical specifications: LC connector acc. to IEC 61754-20 |
| Protection class IP |
IP 20 |
| Connector class |
connector |
| Protection class IP (A) |
IP 20 |
| Number of connectors (A) | 1 |
| Protection class IP (B) |
IP 20 |
| Number of connectors (B) | 12 |
| Cable type |
Harness cable |
| Jacket material |
LSZH |
| Cable jacket characteristics |
Cable, metal-free Zero-halogen |
| Connector type (A) |
MTP12-male |
| Polishing plug (A) |
APC 8° |
| Attenuation grade IL (A) | D |
| Return loss grade RL (A) | 3 |
| Connector color (A) |
black |
| Lever- / frame-coding (A) |
Color |
| Color (A1) |
yellow |
| Connector type (B) |
LC |
| Polishing plug (B) |
PC |
| Attenuation grade IL (B) | C |
| Return loss grade RL (B) | 2 |
| Connector color (B) |
blue |
| Lever- / frame-coding (B) |
Color |
| Lever color (B) |
blue |
| Fiber type |
singlemode (SM) |
| Fiber class |
G.652.D + G.657.A1 (OS1, OS2) |
| Fiber Count | 12 |
| Fiber diameter |
E9 / 125 µm |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 20.0 m / 66 ft |
| Color |
yellow |
