Name: Inst CL EA-S/FTP-4P-2Eca-AWG26-bk (R844121) - ДП "Сінергія"
SKU: R844121

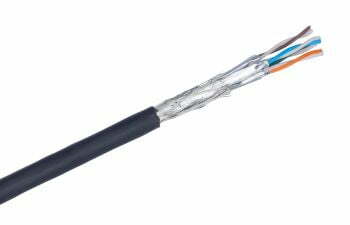

Inst CL EA-S/FTP-4P-2Eca-AWG26-bk (R844121)

The IP video cable is suitable for VIP/IN &OUT applications e.g. video applications, outdoor Wifi connection, industrial applications. The special outer sheath guarantees very good UV and moisture resistance. Connection to standard RJ45 connector for solid wire conductors

Артикул: R844121 Категорія: Misc

Wire type	Wire
Number of wires	8
Cable type	Single cable
Cable design	In&outdoor
Category	Class EA
Jacket material	LSZH
Cable jacket characteristics	UV-resistant flame retardant zero-halogen
Stranding	4 pairs
Wire diameter	AWG 26
Shielding	S/FTP
Cable overall diameter	Ø 6.0 mm
Max. test frequency	650
PoE Level	4
CPR classification	Eca
Standard	ISO/IEC 11801 UL Listed IEC 61156-6 3nd Ed. EN 50173-4 IEC 60332-3-24 TIA/EIA 568.2-D IEC 60754-2 IEC 61034
Armour	No protection

Color Code RAL	9005 Jet black
Cable length	1,000 m
