Installation Cable Cat. 6A, F/UTP, 4P, 500 MHz, LSZH,grey, Dca, 500 m (R806969)

Name: Installation Cable Cat. 6A, F/UTP, 4P, 500 MHz, LSZH,grey, Dca, 500 m (R806969) - ДП "Сінергія"
SKU: R806969

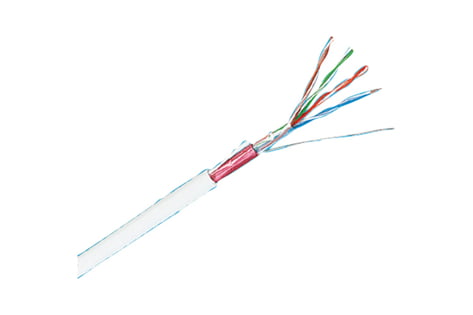

Installation Cable Cat. 6A, F/UTP, 4P, 500 MHz, LSZH,grey, Dca, 500 m (R806969)

Installation cable with overall metal foil for cost effective, shielded generic cabling systems. Cat. 6
_A, F/UTP cable. 100 Ohm impedance. Data transmission frequencies of up to 500 MHz.

Артикул: R806969 Категорія: Installation Cables

Mechanical Data

Color Code RAL

7032 Pebble gray

Technical Data

Wire type	Wire
Number of wires	8
Cable type	Single cable
Cable design	normal
Category	Cat. 6A
Jacket material	LSZH
Cable jacket characteristics	zero-halogen
Stranding	4 pairs
Wire diameter	AWG 24
Shielding	F/UTP
Cable overall diameter	Ø 6.7 mm
Max. test frequency	500
PoE	Yes
PoE Level	4
CPR classification	Dca
Standard	EN 50173-1 ISO/IEC 11801 TIA/EIA 568.2-D IEC 61156-5 2nd ed. IEC 60332-1-2 Fire classification: IEC 60754-2 IEC 61034
Armour	No protection
