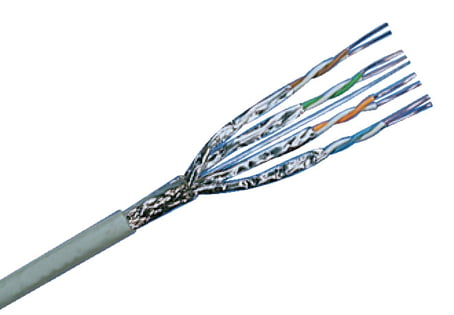

Installation Cable Cat. 6A, U/FTP, 2x4P, 650 MHz, LSZH,grey, Dca, 500 m (R309652)

Name: Installation Cable Cat. 6A, U/FTP, 2x4P, 650 MHz, LSZH,grey, Dca, 500 m (R309652) - ДП "Сінергія"
SKU: R309652

Installation Cable Cat. 6A, U/FTP, 2x4P, 650 MHz, LSZH,grey, Dca, 500 m (R309652)

Cat. 6
_A, U/FTP cable. Foil shielding of pairs. 100 Ohm impedance. Data transmission frequencies of up to 650 MHz.

Артикул: R309652 Категорія: Installation Cables

Mechanical Data

Color Code RAL	7035 Light gray
Cable length	500 m

Technical Data

Wire type	Wire
Number of wires	16
Cable type	Siamese cable
Cable design	normal
Category	Cat. 6A
Jacket material	LSZH
Cable jacket characteristics	zero-halogen
Stranding	2 x 4 pairs
Wire diameter	AWG 23
Shielding	U/FTP
Cable overall diameter	Ø 7.6 / 15.5 mm
Max. test frequency	650
PoE	Yes
PoE Level	4
CPR classification	Dca
Standard	IEC 61156-5 2nd ed. ISO/IEC 11801 EN 50173-1 TIA/EIA 568.2-D IEC 60332-1-2 IEC 60754-2 IEC 61034 CPR fire class: EN50575
Armour	No protection

Pair-shielded 100 Ohm installation cable, suitable for transmission frequencies of up to 650 MHz, 2 cables 4 x 2 (AWG 23). Compliant with standards ISO/IEC 11801 ed. 2.2, EN 50173-1: May 2011 (DIN EN 50173-1), DIN 44332-5, IEC 61156-5 2nd Ed., EN 50288 x-1, 10GBASE-T in acc. with IEEE 802.3™ Section Four, tested and certified by independent laboratory. Low-smoke in acc. with IEC 61034, flame-retardant in acc. with IEC 60332-1 and halogen-free in acc. with IEC 60754-2. Outer jacket color gray, RAL 7035.
