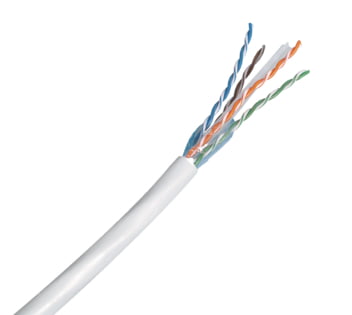

Installation Cable Cat. 6A, U/UTP, 4P, 650 MHz, LSZH,grey, WARP,Dca, 500 m (R804269)

Name: Installation Cable Cat. 6A, U/UTP, 4P, 650 MHz, LSZH,grey, WARP,Dca, 500 m (R804269) - ДП "Сінергія"
SKU: R804269

Solid wire installation cable U/UTP Cat. 6
_A. 100 Ohm impedance. Data transmission frequencies of up to 650 MHz.

Артикул: R804269 Категорія: Installation Cables

Mechanical Data

Color	gray
Cable length	500 m

Technical Data

Wire type	Wire
Number of wires	8
Cable type	Single cable
Cable design	normal
Category	Cat. 6A
Jacket material	LSZH
Cable jacket characteristics	zero-halogen
Stranding	4 pairs
Wire diameter	AWG 23
Shielding	U/UTP WARP
Cable overall diameter	Ø 7.6 mm
Max. test frequency	650
PoE	Yes
PoE Level	4
CPR classification	Dca
Standard	ISO/IEC 11801 EN 50173-1 TIA/EIA 568.2-D IEC 61156-5 IEC 60332-1-2 IEC 60754-2 IEC 61034
Armour	No protection
