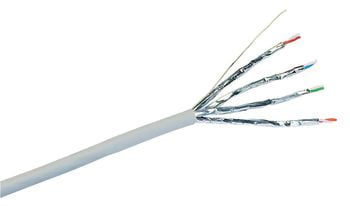

Installation Cable Cat. 7, F/FTP, 4P, 650 MHz, LSFRZH,grey, Cca, 500 m (R833676)

Installation Cable Cat. 7, F/FTP, 4P, 650 MHz, LSFRZH,grey, Cca, 500 m (R833676)

Cat. 7, F/FTP cable. Foil shielding of pairs. 100 Ohm impedance. Data transmission frequencies of up to 650 MHz.

Артикул: R833676 Категорія:
Mechanical Data

Color Code RAL

7035 Light gray

Cable length

500 m

Technical Data

Wire type

solid wire

Number of wires

8

Cable type

Single cable

Cable design

normal

Category

Cat. 7

Jacket material

LSFRZH

Cable jacket characteristics

flame retardant

zero-halogen

Cable, metal-free

Stranding

4 pairs

Wire diameter

AWG 23

Shielding

F/FTP

Cable overall diameter

Ø 7.3 - 7.7 mm

Max. test frequency

650

PoE

Yes

PoE Level

4

CPR classification

Cca

Standard

IEC 61156-5 2nd ed.

ISO/IEC 11801

EN 50173-1

EN 50288-x-1

Fire rating: IEC 60332-3-24

IEC 60754-2

IEC 61034

Armour

No protection

Application

indoor use

Pair-shielded 100 Ohm installation cable, suitable for transmission frequencies of up to 650 MHz, 4 x 2 (AWG 23). Compliant with standards ISO/IEC 11801 ed. 2.2, EN 50173-1: May 2011 (DIN EN 50173-1), IEC 61156-5 2nd Ed., EN 50288 x-1, 10GBASE-T in acc. with IEEE 802.3™ Section Four, tested and certified by independent laboratory. Low-smoke in acc. with IEC 61034, flame-retardant in acc. with IEC 60332-1 and halogen-free in acc. with IEC 60754-2. Outer jacket color gray, RAL 7035.
