Installation Cable Cat. 7, S/FTP, 4P, 1000 MHz, LSFRZH,grey, Cca, 500 m (R833677)

Name: Installation Cable Cat. 7, S/FTP, 4P, 1000 MHz, LSFRZH,grey, Cca, 500 m (R833677) - ДП "Сінергія"
SKU: R833677

Installation Cable Cat. 7, S/FTP, 4P, 1000 MHz, LSFRZH,grey, Cca, 500 m (R833677)

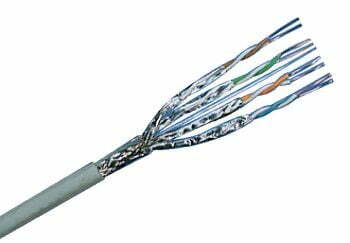

Premium Cat.7, S/FTP cable. Foil shielding of pairs and overall tin-plated copper braid shield. 100 Ohm impedance. Data transmission frequency of up to 1000 MHz.

Артикул: R833677 Категорія: Misc

Mechanical Data

Color	light gray
Color Code RAL	7035 Light gray
Cable length	500 m

Technical Data

Wire type	Wire
Number of wires	8
Cable type	Single cable
Cable design	normal
Category	Cat. 7
Jacket material	LSFRZH
Cable jacket characteristics	Cable, metal-free flame retardant zero-halogen
Stranding	4 pairs
Wire diameter	AWG 23
Shielding	S/FTP
Cable overall diameter	Ø 7.2 - 7.5 mm
Max. test frequency	1000
PoE	Yes
PoE Level	4
CPR classification	Cca
Standard	EN 50173-1 ISO/IEC 11801 IEC 61156-5 2nd ed. EN 50288-4-1 IEC 61034 IEC 60754-2 CPR fire class: EN50575 Fire rating: IEC 60332-3-24
Armour	No protection

Pair-shielded 100 Ohm installation cable with overall braided screen, suitable for transmission frequencies of up to 1000 MHz, 4 x 2 (AWG 23). Compliant with standards ISO/IEC 11801 ed. 2.2, EN 50173-1: May 2011 (DIN EN 50173-1), IEC 61156-5 2nd Ed., EN 50288-4-1, 10GBASE-T in acc. with IEEE 802.3™ Section Four. Low-smoke in acc. with IEC 61034, flame-retardant in acc. with IEC 60332-1 and halogen-free in acc. with IEC 60754-2. Outer jacket color gray, RAL 7035.
