Installation Cable Cat. 7, S/FTP, 4P, 1000 MHz, LSFRZH,grey, Dca, 500 m (R809799)

Installation Cable Cat. 7, S/FTP, 4P, 1000 MHz, LSFRZH,grey, Dca, 500 m (R809799)

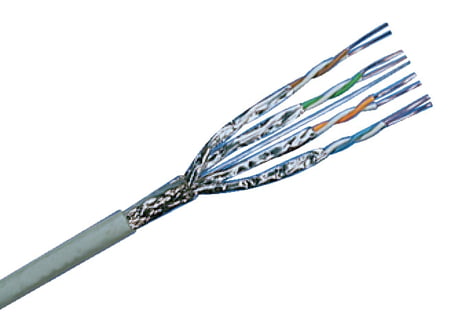

Premium Cat.7, S/FTP cable. Foil shielding of pairs and overall tin-plated copper braid shield. 100 Ohm impedance. Data transmission frequency of up to 1000 MHz.

Артикул: R809799 Категорія:
Mechanical Data

Color

light gray

Color Code RAL

7035 Light gray

Cable length

500 m

Technical Data

Wire type

Wire

Number of wires

8

Cable type

Single cable

Cable design

normal

Category

Cat. 7

Jacket material

LSFRZH

Cable jacket characteristics

flame retardant

zero-halogen

Stranding

4 pairs

Wire diameter

AWG 23

Shielding

S/FTP

Cable overall diameter

Ø 7.2 - 7.5 mm

Max. test frequency

1000

PoE

Yes

PoE Level

4

CPR classification

Dca

Standard

EN 50173-1

IEC 61156-5 2nd ed.

ISO/IEC 11801

EN 50288-4-1

IEC 60754-2

IEC 61034

CPR fire class: EN50575

IEC 60332-1

Armour

No protection

Pair-shielded 100 Ohm installation cable with overall braided screen, suitable for transmission frequencies of up to 1000 MHz, 4 x 2 (AWG 23). Compliant with standards ISO/IEC 11801 ed. 2.2, EN 50173-1: May 2011 (DIN EN 50173-1), IEC 61156-5 2nd Ed., EN 50288-4-1, 10GBASE-T in acc. with IEEE 802.3™ Section Four. Low-smoke in acc. with IEC 61034, flame-retardant in acc. with IEC 60332-1 and halogen-free in acc. with IEC 60754-2. Outer jacket color gray, RAL 7035.
