Installation Cable Cat. 7A, S/FTP, 4P, 1200 MHz, AWG22, LSFRZH,grey, B2ca, 500 m (R833681)

Name: Installation Cable Cat. 7A, S/FTP, 4P, 1200 MHz, AWG22, LSFRZH,grey, B2ca, 500 m (R833681) - ДП "Сінергія"
SKU: R833681

Installation Cable Cat. 7A, S/FTP, 4P, 1200 MHz, AWG22, LSFRZH,grey, B2ca, 500 m (R833681)

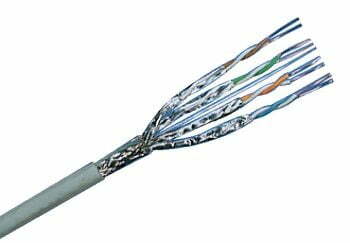

Cost-effective Cat. 7
_A, S/FTP cable. Foil shielding of pairs and overall tin-plated copper braid shield. 100 Ohm impedance. Data transmission frequency of up to 1200 MHz. «25G Ready» for distances up to 24m

Артикул: R833681 Категорія: Misc

Mechanical Data

Color Code RAL	7035 Light gray
Cable length	500 m

Technical Data

Wire type	solid wire
Number of wires	8
Cable type	Single cable
Cable design	normal
Category	Cat. 7A
Jacket material	LSFRZH
Cable jacket characteristics	Cable, metal-free flame retardant zero-halogen
Stranding	4 pairs
Wire diameter	AWG 22
Shielding	S/FTP
Cable overall diameter	Ø 7.5 - 8.3 mm
Max. test frequency	1200
PoE	Yes
PoE Level	4
CPR classification	B2ca
Standard	IEC 61156-5 ISO/IEC 11801 EN 50173-1 IEC 60754-2 EN 50288-9-1 IEC 61034 Fire rating: IEC 60332-3-24 CPR fire class: EN50575
Armour	No protection
Application	indoor use
