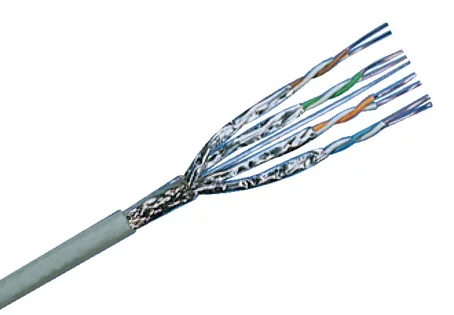

Cost-effective Cat. 7A, S/FTP cable. Foil shielding of pairs and overall tin-plated copper braid shield. 100 Ohm impedance. Data transmission frequency of up to 1200 MHz. «25G Ready» for distances up to 24m
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm | ISO/IEC 11801 EN 50173-1 IEC 61156-5 EN 50288-9-1 IEC 61034 IEC 60754-2 CPR fire class: EN50575 EN 50288-9-1 |
| Protection class IP | IP 20 |
| PoE | Yes |
| PoE Level | 4 |
| Cable type | Single cable |
| Cable category | Cat. 7A |
| Shielding | S/FTP |
| Jacket material | LSZH |
| CPR classification | Eca |
| Cable jacket characteristics | Zero-halogen |
| Armour | No protection |
| Cable overall diameter | Ø 7.5 mm |
| Conductor | AWG 23 |
| Cable design | normal |
| Number of wires | 8 |
| Stranding | 4 pairs |
| Wire type | Wire |
| Max. test frequency | 1200 MHz |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 500.0 m / 1640 ft |
| Color Code RAL | 7035 Light gray |
100 Ohm installation cable
Suitable for voice, video and data transmission
For frequencies up to 1200MHz
