Installation Cable Cat. 7A, S/FTP, 4P, 1500 MHz, AWG22, LSFRZH,grey, Dca, 500 m (R507032)

Installation Cable Cat. 7A, S/FTP, 4P, 1500 MHz, AWG22, LSFRZH,grey, Dca, 500 m (R507032)

Installation Cable Cat. 7A, S/FTP, 4P, 1500 MHz, AWG22, LSFRZH,grey, Dca, 500 m (R507032)

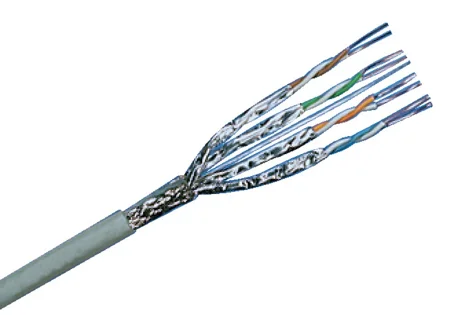

Premium Cat. 7
A, S/FTP cable with wire AWG 22. Foil shielding of pairs and overall tin-plated copper braid shield. 100 Ohm impedance. Datatransmission frequency of up to 1500 MHz. «25G Ready» for distances up to 24m

Артикул: R507032 Категорія:
Mechanical Data

Color

light gray

Color Code RAL

7035 Light gray

Cable length

500 m

Technical Data

Wire type

Wire

Number of wires

8

Cable type

Single cable

Cable design

normal

Category

Cat. 7A

Jacket material

LSFRZH

Cable jacket characteristics

flame retardant

zero-halogen

Stranding

4 pairs

Wire diameter

AWG 22

Shielding

S/FTP

Cable overall diameter

Ø 7.7 - 8.5 mm

Max. test frequency

1500

PoE

Yes

PoE Level

4

CPR classification

Dca

Standard

EN 50173-1

IEC 61156-5

ISO/IEC 11801

EN 50288-4-1

IEC 60332-3-24

IEC 61034

IEC 60754-2

CPR fire class: EN50575

Armour

No protection
