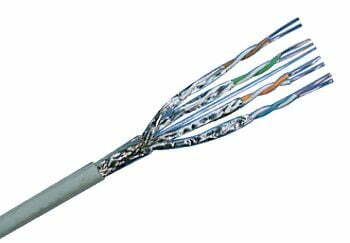

Installation Cable, S/FTP, Class EA, PL 105m, 4P, AWG22, LSFRZH,grey, Dca, 500 m (R823885)

Installation Cable, S/FTP, Class EA, PL 105m, 4P, AWG22, LSFRZH,grey, Dca, 500 m (R823885)

Installation Cable, S/FTP, Class EA, PL 105m, 4P, AWG22, LSFRZH,grey, Dca, 500 m (R823885)

Due to attenuation and propagation delay optimization of this S/FTP cable Classe EA acc. to ISO/IEC 11801 and EN 50173 in Permantent Links (PL) up to 105m and channel 120m canbe achieved. Foil shielding of pairs and overall tin-plated copper braid shield. 100 Ohm impedance.

Артикул: R823885 Категорія:
Mechanical Data

Color Code RAL

7035 Light gray

Cable length

500 m

Technical Data

Wire type

Wire

Number of wires

8

Cable type

Single cable

Cable design

excess length

Category

Class EA

Jacket material

LSFRZH

Cable jacket characteristics

flame retardant

zero-halogen

Stranding

4 pairs

Wire diameter

AWG 22

Shielding

S/FTP

Cable overall diameter

Ø 8.5 mm

PoE

Yes

PoE Level

4

CPR classification

Dca

Standard

EN 50173-1

ISO/IEC 11801

IEC 61156-5

EN 50288-4-1

IEC 60332-3-24

CPR fire class: EN50575

Armour

No protection

Pair-shielded 100 Ohm installation cable with overall braided screen (AWG 22). Compliant with standards ISO/IEC 11801 ed. 2.2, EN 50173-1: May 2011 (DIN EN 50173-1), IEC 61156-5, EN 50288-4-1, 10GBASE-T in acc. with IEEE 802.3™ Section Four. Low-smoke in acc. with IEC 61034, flame-retardant in acc. with IEC 60332-3-24 and halogen-free in acc. with IEC 60754-2. Outer jacket color gray, RAL 7035.
