Installation Cable, U/UTP, Class E, PL 60m, 4P, AWG26, LSZH,white, Eca, 500 m (R823869)

Name: Installation Cable, U/UTP, Class E, PL 60m, 4P, AWG26, LSZH,white, Eca, 500 m (R823869) - ДП "Сінергія"
SKU: R823869

Installation Cable, U/UTP, Class E, PL 60m, 4P, AWG26, LSZH,white, Eca, 500 m (R823869)

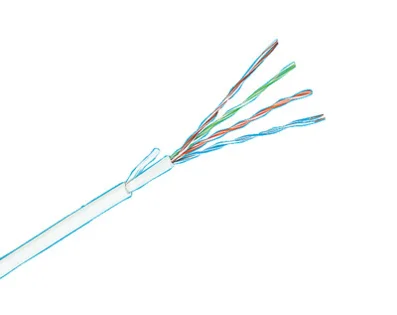

The thin and flexible U/UTP cable is ideal for installations with limited space for Class E acc. to ISO/IEC 11801 and EN 50173 in Permantent Links (PL) up to 60m. 100 Ohm impedance.

Артикул: R823869 Категорія: Installation Cables

Mechanical Data

Cable length

500 m

Technical Data

Wire type	Wire
Number of wires	8
Cable type	Single cable
Cable design	extra slim
Category	Class E
Jacket material	LSZH
Cable jacket characteristics	zero-halogen
Stranding	4 pairs
Wire diameter	AWG 26
Shielding	U/UTP
Cable overall diameter	Ø 4.6 mm
PoE	Yes
PoE Level	4
CPR classification	Eca
Standard	IEC 61156-5 2nd ed. ISO/IEC 11801 IEC 61156-7 EN 50173-1 EN 50288-6-1 TIA/EIA 568.2-D Fire classification: IEC 60332-1 IEC 61034
Armour	No protection
