Mini Breakout Cable I-V(ZN=B)H, OM2, Eca, 16-fibers (R314489)

Mini Breakout Cable I-V(ZN=B)H, OM2, Eca, 16-fibers (R314489)

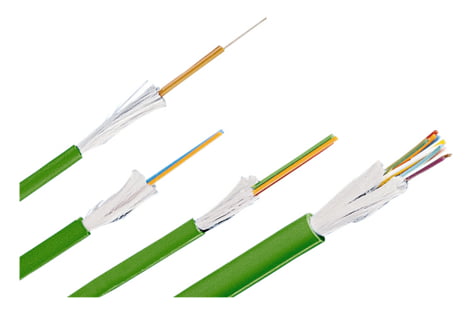

The mini breakout cable is the ideal fiber to the desk solution for direct connector fitting. Due to its compact design it is easy to install, where space is limited it is perfect and economic solution. The 900µm tight buffers are individually colored and surrounded by glass yarns.

  • Sheath: LSZH, green

  • Fiber: multimode (MM) G50/125

Артикул: R314489

Technical Data

DESCRIPTION VALUE/VALUE RANGE
Standard / norm

ISO/IEC 11801:2002

IEC 60794-1-2 E1

IEC 60794-1-2 E11

IEC 60794-1-2 E3

IEC 60794-1-2 F1

IEC 60332-1

IEC 61034

IEC 60754-2

Protection class IP

IP 20

Cable type

MiniBreakout cable

Jacket material

LSZH

CPR classification Eca
Cable jacket characteristics

Cable, metal-free

Zero-halogen

Armour

No protection

Cable overall diameter 7.5 mm
Fiber type

OM2

Fiber class

OM2

Fiber Count 16
Conductor type

tight buffer

Fiber diameter

900 µm ± 50 µm

Application

indoor-use

DIN/VDE Code I-V(ZN)BH

Mechanical Data

DESCRIPTION VALUE/VALUE RANGE
Cable length 2000.0 m / 6562 ft
Color

green
