| Operation temperature |
-20 °C to +60 °C / -4 °F to +140 °F |
| Temperature cycling acceptance criteria |
Δα ≤ 0,05 dB |
| Temperature cycling |
-20 °C +60 °C / -4 °F +140 °F |
| Temperature cycling - reversible acceptance criteria |
Δα ≤ 0,15 dB, reversible |
| Temperature cycling - reversible test method |
IEC 60794-1-22:F1 |
| Temperature cycling test method |
IEC 60794-1-22:F1 |
| Temperature cycling - reversible |
-25 °C +60 °C / -13 °F +140 °F |
| Transport / store temperature |
-25 °C to +60 °C / -13 °F to +140 °F |
| Crush resistance - short term |
1000 N/100mm |
| Expected lifetime |
min. 30 years |
| Tensile performance - during installation acceptance criteria |
Δα ≤ 0,05 dB after test |
| Repeated bending acceptance criteria |
no damage |
| Repeated bending test method |
IEC 60794-1-21:E6 |
| Repeated bending |
R=20 x cable diameter, 25 cycles |
| Cable bend - acceptance criteria |
Δα ≤ 0,05 dB after test, no damage |
| Torsion |
L=2 m, rotation angle ±180°,5 cycles |
| Torsion acceptance criteria |
no damage |
| Impact resistance acceptance criteria |
Δα ≤ 0,05 dB after test, no damage |
| Torsion test method |
IEC 60794-1-21:E7 |
| Impact resistance |
3 Nm, 3 impacts, d=20 mm,R=300 mm |
| Crush resistance - long term acceptance criteria |
Δα ≤ 0,05 dB prior release, no damage |
| Tensile performance - in service acceptance criteria |
Δα ≤ 0,15 dB |
| Tensile performance - in service test method |
IEC 60794-1-21:E1 |
| Tensile performance - in service |
250 N (max. allow-able tension) |
| Cable weight |
9.0 kg/km / 6 lbs/1000ft |
| Fiber type |
G.657.A1 |

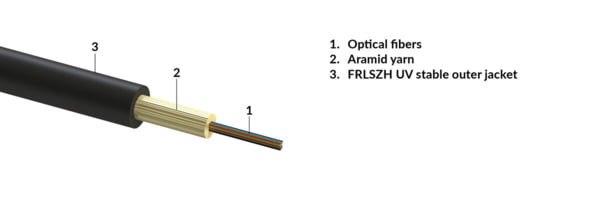

| Cable type |
MiniCore cable |
| Jacket material |
UV stable FRLSZH |
| Fiber Count |
6 |
| CPR classification |
Fca |
| Fiber color coding |
1.-12.: red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink |
| Sheath marking |
Ink-Jet, black |
| Cable version |
Aerial drop |
| Application |
universal use |
