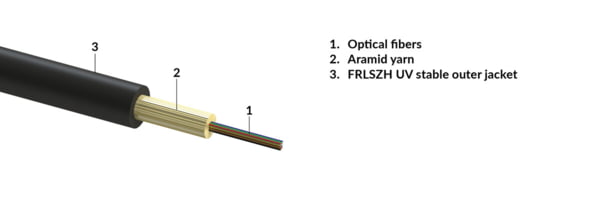

MiniCore cable, aerial-drop, universal-use, no armour, FRLSZH sheath - ivory, Fca, 08-fibers G657.A1 (R857711)

MiniCore cable, aerial-drop, universal-use, no armour, FRLSZH sheath - ivory, Fca, 08-fibers G657.A1 (R857711)

MiniCore cable, aerial-drop, universal-use, no armour, FRLSZH sheath - ivory, Fca, 08-fibers G657.A1 (R857711)

Артикул: R857711 Категорія:
Environmental Characteristics

Operation temperature

-20 °C to +60 °C / -4 °F to +140 °F

Temperature cycling acceptance criteria

Δα ≤ 0,05 dB

Temperature cycling

-20 °C +60 °C / -4 °F +140 °F

Temperature cycling - reversible acceptance criteria

Δα ≤ 0,15 dB, reversible

Temperature cycling - reversible test method

IEC 60794-1-22:F1

Temperature cycling test method

IEC 60794-1-22:F1

Temperature cycling - reversible

-25 °C +60 °C / -13 °F +140 °F

Transport / store temperature

-25 °C to +60 °C / -13 °F to +140 °F

Mechanical Data

Crush resistance - short term

1000 N/100mm

Expected lifetime

min. 30 years

Tensile performance - during installation acceptance criteria

Δα ≤ 0,05 dB after test

Repeated bending acceptance criteria

no damage

Repeated bending test method

IEC 60794-1-21:E6

Repeated bending

R=20 x cable diameter, 25 cycles

Cable bend - acceptance criteria

Δα ≤ 0,05 dB after test, no damage

Torsion

L=2 m, rotation angle ±180°,5 cycles

Torsion acceptance criteria

no damage

Impact resistance acceptance criteria

Δα ≤ 0,05 dB after test, no damage

Torsion test method

IEC 60794-1-21:E7

Impact resistance

3 Nm, 3 impacts, d=20 mm,R=300 mm

Crush resistance - long term acceptance criteria

Δα ≤ 0,05 dB prior release, no damage

Tensile performance - in service acceptance criteria

Δα ≤ 0,15 dB

Tensile performance - in service test method

IEC 60794-1-21:E1

Tensile performance - in service

250 N (max. allow-able tension)

Cable weight

11.0 kg/km / 7 lbs/1000ft

Technical Data

Fiber type

G.657.A1

Cable type

MiniCore cable

Jacket material

UV stable FRLSZH

Fiber Count

8

CPR classification

Fca

Fiber color coding

1.-12.: red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink

Sheath marking

Ink-Jet, black

Cable version

Aerial drop

Application

universal use

Prod
