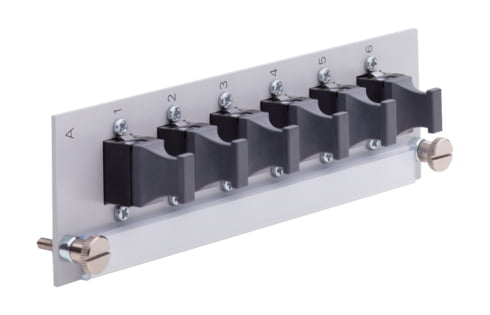

MPO Adapter Plate 7HP, metal, 6xMTP, type A, gray (R514593)

MPO Adapter Plate 7HP, metal, 6xMTP, type A, gray (R514593)

Adapter plate equipped with MTP adapters, type A.

Артикул: R514593 Категорія:
Mechanical Data

Dimensions

35.2 mm x 128.7 mm / 1.386 in x 5.067 in (W x H)

Color Code NCS

S 2502-B

Material

steel: DC01 (1.0330), 1.5 mm

Technical Data

Number of connectors (A)

6

Connector type (A)

MTP

Connector color (A)

black

Protection class IP (A)

IP 20

Wiring diagram

type A

Rack mounting version

slide-in unit

Standard

MPO connectors acc. to IEC 61754-7-1 (MPO connector family - one fiber row)
