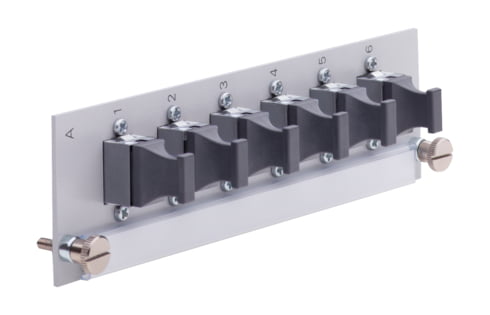

MPO Adapter Plate 7HP, metal, 6xMTP, type B, gray (R514595)

MPO Adapter Plate 7HP, metal, 6xMTP, type B, gray (R514595)

MPO Adapter Plate 7HP, metal, 6xMTP, type B, gray (R514595)

Adapter plate equipped with MTP adapters, type B.

Артикул: R514595 Категорія:
Mechanical Data

Dimensions

35.2 mm x 128.7 mm / 1.386 in x 5.067 in (W x H)

Color Code NCS

S 2502-B

Material

steel: DC01 (1.0330), 1.5 mm

Technical Data

Number of connectors (A)

6

Connector type (A)

MTP

Connector color (A)

gray

Protection class IP (A)

IP 20

Wiring diagram

type B

Rack mounting version

slide-in unit

Standard

MPO connectors acc. to IEC 61754-7-1 (MPO connector family - one fiber row)
