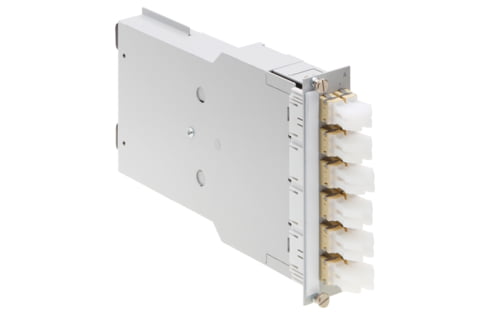

MPO Modul 7HP, metal, 2xMTP12-female - 12xLC-Duplex, OM4, PC/PC, ceramic, type S, gray (R802057)

Name: MPO Modul 7HP, metal, 2xMTP12-female - 12xLC-Duplex, OM4, PC/PC, ceramic, type S, gray (R802057) - ДП "Сінергія"
SKU: R802057

Connectivity method: type S.

Polishing connector MTP: PC.

Polishing connector LC: PC.

Артикул: R802057 Категорія: Misc

Slide-in unit, radius limiter radius 35 mm, labeling strips and installation instructions
Metal front panel equipped with 12 x LC-Duplex adapters and fan-outs inserted, rear side two MTP12-female connectors mounted

Mechanical Data

Dimensions	35.0 mm x 129.0 mm x 215.0 mm / 1.378 in x 5.079 in x 8.465 in (W x H x D)
Color Code NCS	S 2502-B

Technical Data

Conductor type FO	semi-tight buffer, dry
Fiber type	Multimode (MM)
Fiber class	OM4
Fiber diameter	G50 / 125 µm
Number of connectors (A)	2
Number of connectors (B)	12
Connector type (A)	MTP12-female
Connector type (B)	LC-Duplex
Connector color (A)	gray
Connector color (B)	heather violet
Polishing plug (A)	PC
Polishing plug (B)	PC
Protection class IP (A)	IP 20
Protection class IP (B)	IP 20
Return loss grade RL (A)	4
Return loss grade RL (B)	3
Attenuation grade IL (A)	Cm
Attenuation grade IL (B)	Bm
Wiring diagram	type S
Rack mounting version	slide-in unit
Adapter fastening method	end cap snap-in
Assembly	fully populated
Sleeve material	ceramic
Standard	MPO connectors acc. to IEC 61754-7-1 (MPO connector family - one fiber row)
