MPO Modul 7HP, metal, MTP12-male - 6xLC-Duplex, OM4, PC/PC, ceramic, type A, black (R514573)

Name: MPO Modul 7HP, metal, MTP12-male - 6xLC-Duplex, OM4, PC/PC, ceramic, type A, black (R514573) - ДП "Сінергія"
SKU: R514573

Connectivity method: type A.

Polishing connector MTP: PC.

Polishing connector LC: PC.

Артикул: R514573 Категорія: Misc

Slide-in unit, radius limiter radius 35 mm, labeling strips and installation instructions

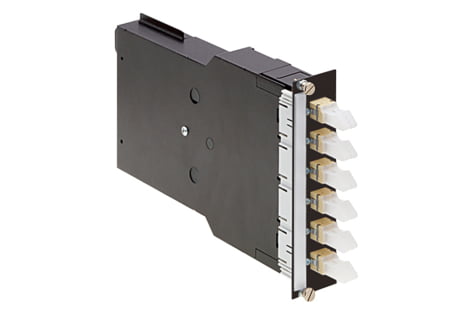

Metal front panel equipped with 6 x LC-Duplex adapters and fan-out inserted, rear side one MTP12-male connector mounted

Mechanical Data

Dimensions	35.0 mm x 129.0 mm x 215.0 mm / 1.378 in x 5.079 in x 8.465 in (W x H x D)
Color Code RAL	9005 Jet black

Technical Data

Fiber type	Multimode (MM)
Fiber class	OM4
Fiber diameter	G50 / 125 µm
Number of connectors (A)	1
Number of connectors (B)	6
Connector type (A)	MTP12-male
Connector type (B)	LC-Duplex
Connector color (A)	black
Connector color (B)	heather violet
Polishing plug (A)	PC
Polishing plug (B)	PC
Protection class IP (A)	IP 20
Protection class IP (B)	IP 20
Return loss grade RL (A)	4
Return loss grade RL (B)	3
Attenuation grade IL (A)	Cm
Attenuation grade IL (B)	Bm
Wiring diagram	type A
Rack mounting version	slide-in unit
Adapter fastening method	end cap
Assembly	fully populated
Sleeve material	ceramic
Standard	MPO connectors acc. to IEC 61754-7-1 (MPO connector family - one fiber row)
