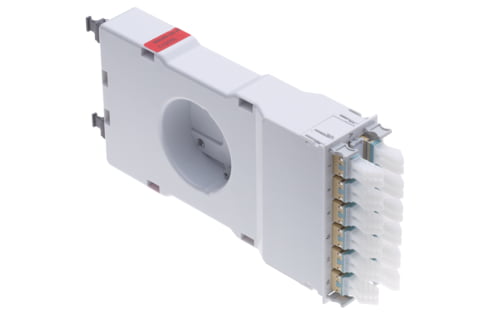

MPO Modul HD, 2xMTP12-female - 12xLC-Duplex, OM4, PC/PC, type A, gray (R515858)

MPO Modul HD, 2xMTP12-female - 12xLC-Duplex, OM4, PC/PC, type A, gray (R515858)

MPO Modul HD, 2xMTP12-female - 12xLC-Duplex, OM4, PC/PC, type A, gray (R515858)

Артикул: R515858 Категорія:

Scope of supply

  • Slide-in unit, radius limiter radius 30 mm, labeling strips and installation instructions

  • Plastic front panel equipped with 12 x LC-Duplex adapters and fan-outs inserted, rear side two MTP12-female connectors mounted

Environmental Characteristics

Operation temperature

10 °C to 60 °C / +50 °F to +140 °F

Mechanical Data

Dimensions

43.2 mm x 109.9 mm x 217.0 mm / 1.701 in x 4.327 in x 8.543 in (W x H x D)

Color Code NCS

S 1005-R80B

Material

plastic: PC, fiber-glass reinforced, halogen-free

Technical Data

Conductor type FO

semi-tight buffer, dry

Fiber type

Multimode (MM)

Fiber class

OM4

Fiber diameter

G50 / 125 µm

Number of connectors (A)

2

Number of connectors (B)

12

Connector type (A)

MPO, female

Connector type (B)

LC-Duplex

Connector color (A)

black

Connector color (B)

heather violet

Polishing plug (A)

PC

Polishing plug (B)

PC

Protection class IP (A)

IP 20

Protection class IP (B)

IP 20

Return loss (RL)

≥ 35 dB

Insertion loss (IL) max. value

≤ 0.35 dB

Attenuation grade IL (A)

Cm

Wiring diagram

type A

Rack mounting version

slide-in unit

Adapter fastening method

end cap snap-in

Assembly

fully populated

Sleeve material

ceramic

Standard

MPO connectors acc. to IEC 61754-7-1 (MPO connector family - one fiber row)

UL Listed
