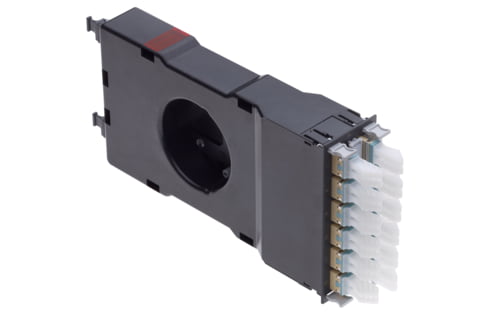

MPO Modul HD, 2xMTP12-male - 12xLC-Duplex, OM4, PC/PC, type A, black (R807753)

MPO Modul HD, 2xMTP12-male - 12xLC-Duplex, OM4, PC/PC, type A, black (R807753)

MPO Modul HD, 2xMTP12-male - 12xLC-Duplex, OM4, PC/PC, type A, black (R807753)

Артикул: R807753 Категорія:

Scope of supply

  • Slide-in unit, radius limiter radius 30 mm, labeling strips and installation instructions

  • Plastic front panel equipped with 12 x LC-Duplex adapters and fan-outs inserted, rear side two MTP12-male connectors mounted

Environmental Characteristics

Operation temperature

10 °C to 60 °C / +50 °F to +140 °F

Mechanical Data

Dimensions

43.2 mm x 109.9 mm x 217.0 mm / 1.701 in x 4.327 in x 8.543 in (W x H x D)

Color Code RAL

9005 Jet black

Material

plastic: PC, fiber-glass reinforced, halogen-free

Technical Data

Conductor type FO

semi-tight buffer, dry

Fiber type

Multimode (MM)

Fiber class

OM4

Fiber diameter

G50 / 125 µm

Number of connectors (A)

2

Number of connectors (B)

12

Connector type (A)

MTP12-male

Connector type (B)

LC-Duplex

Connector color (A)

black

Connector color (B)

heather violet

Polishing plug (A)

PC

Polishing plug (B)

PC

Protection class IP (A)

IP 20

Protection class IP (B)

IP 20

Return loss (RL)

≥ 35 dB

Insertion loss (IL) max. value

≤ 0.35 dB

Attenuation grade IL (A)

Cm

Wiring diagram

type A

Rack mounting version

slide-in unit

Adapter fastening method

end cap snap-in

Assembly

fully populated

Sleeve material

ceramic
