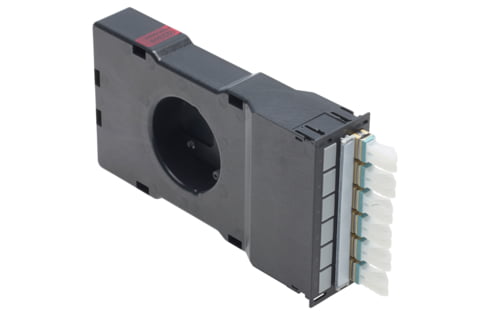

MPO Modul HD, MPO12-female - 6xLC-Duplex, G.657.A2, APC/PC, type S+, black (R872407)

Артикул: R872407 Категорія: Misc

Slide-in unit, radius limiter radius 30 mm, labeling strips and installation instructions
Plastic front panel equipped with 6 x LC-Duplex adapters and fan-outs inserted, rear side one MTP12-female connector mounted

Environmental Characteristics

Operation temperature

10 °C to 60 °C / +50 °F to +140 °F

Mechanical Data

Dimensions	43.2 mm x 109.9 mm x 217.0 mm / 1.701 in x 4.327 in x 8.543 in (W x H x D)
Color Code RAL	9005 Jet black
Material	plastic: PC, fiber-glass reinforced, halogen-free

Technical Data

Conductor type FO	semi-tight buffer, dry
Fiber type	Singlemode (SM)
Fiber class	G.657.A1 (covers G.652.D, OS1, OS2)
Fiber diameter	n.a.
Number of connectors (A)	1
Number of connectors (B)	6
Connector type (A)	MPO, female
Connector type (B)	LC-Duplex
Connector color (A)	black
Connector color (B)	blue
Polishing plug (A)	APC 8°
Polishing plug (B)	PC
Protection class IP (A)	IP 20
Protection class IP (B)	IP 20
Return loss (RL)	≥ 45 dB
Insertion loss (IL) max. value	≤ 0.4 dB
Wiring diagram	type S+
Rack mounting version	slide-in unit
Adapter fastening method	end cap snap-in
Assembly	partly populated
Sleeve material	ceramic
Standard	UL Listed acc. to IEC 61754-15 acc. to DIN EN 186270
