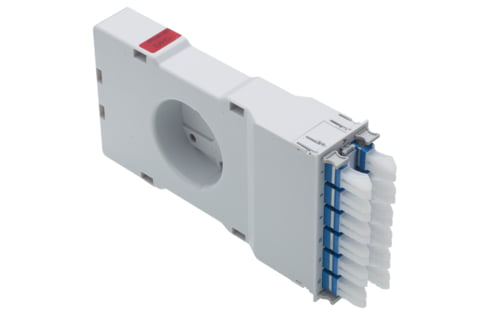

MPO Modul HD, MTP12-female - 12xE-2000™, OM4, PC/PC, type A, gray (R515875)

MPO Modul HD, MTP12-female - 12xE-2000™, OM4, PC/PC, type A, gray (R515875)

MPO Modul HD, MTP12-female - 12xE-2000™, OM4, PC/PC, type A, gray (R515875)

Designed for 19" 1U HD patch panel.

Connectivity method: type A.

Артикул: R515875 Категорія:

Scope of supply

  • Slide-in unit, radius limiter radius 30 mm, labeling strips and installation instructions

  • Plastic front panel equipped with 12 x E-2000™ adapters and fan-outs inserted, rear side one MTP12-female connector mounted

Environmental Characteristics

Operation temperature

10 °C to 60 °C / +50 °F to +140 °F

Mechanical Data

Dimensions

43.2 mm x 109.9 mm x 217.0 mm / 1.701 in x 4.327 in x 8.543 in (W x H x D)

Color Code NCS

S 2502-B

Material

plastic: PC, fiber-glass reinforced, halogen-free

Technical Data

Conductor type FO

semi-tight buffer, dry

Fiber type

Multimode (MM)

Fiber class

OM4

Fiber diameter

G50 / 125 µm

Number of connectors (A)

1

Number of connectors (B)

12

Connector type (A)

MTP12-female

Connector type (B)

E-2000™

Connector color (A)

black

Connector color (B)

beige

Lever- / frame-coding (B)

Color

Polishing plug (A)

PC

Polishing plug (B)

PC

Protection class IP (A)

IP 20

Protection class IP (B)

IP 20

Return loss (RL)

≥ 35 dB

Insertion loss (IL) max. value

≤ 0.35 dB

Attenuation grade IL (A)

Cm

Wiring diagram

type A

Rack mounting version

slide-in unit

Adapter fastening method

end cap snap-in

Assembly

fully populated

Sleeve material

ceramic

Standard

MPO connectors acc. to IEC 61754-7-1 (MPO connector family - one fiber row)

UL Listed
