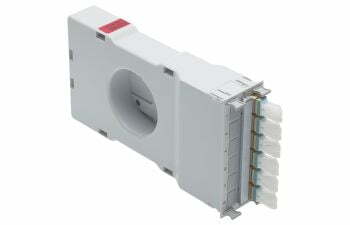

MPO Modul HD, MTP12-female - 6xLC-Duplex, G.652.D, APC/PC, type C, gray (R826601)

MPO Modul HD, MTP12-female - 6xLC-Duplex, G.652.D, APC/PC, type C, gray (R826601)

MPO Modul HD, MTP12-female - 6xLC-Duplex, G.652.D, APC/PC, type C, gray (R826601)

Артикул: R826601 Категорія:

Scope of supply

  • Slide-in unit, radius limiter radius 30 mm, labeling strips and installation instructions

  • Plastic front panel equipped with 6 x LC-Duplex adapters and fan-outs inserted, rear side one MTP12-female connector mounted

Environmental Characteristics

Operation temperature

10 °C to 60 °C / +50 °F to +140 °F

Mechanical Data

Dimensions

43.2 mm x 109.9 mm x 217.0 mm / 1.701 in x 4.327 in x 8.543 in (W x H x D)

Color Code NCS

S 2502-B

Material

plastic: PC, fiber-glass reinforced, halogen-free

Technical Data

Conductor type FO

semi-tight buffer, dry

Fiber type

Singlemode (SM)

Fiber class

G.657.A1 (covers G.652.D, OS1, OS2)

Fiber diameter

n.a.

Number of connectors (A)

1

Number of connectors (B)

6

Connector type (A)

MPO, female

Connector type (B)

LC-Duplex

Connector color (A)

black

Connector color (B)

blue

Polishing plug (A)

APC 8°

Polishing plug (B)

PC

Protection class IP (A)

IP 20

Protection class IP (B)

IP 20

Return loss (RL)

≥ 45 dB

Insertion loss (IL) max. value

≤ 0.4 dB

Attenuation grade IL (A)

D

Wiring diagram

type C

Rack mounting version

slide-in unit

Adapter fastening method

end cap snap-in

Assembly

partly populated

Sleeve material

ceramic

Standard

acc. to DIN EN 186270

acc. to IEC 61754-15
