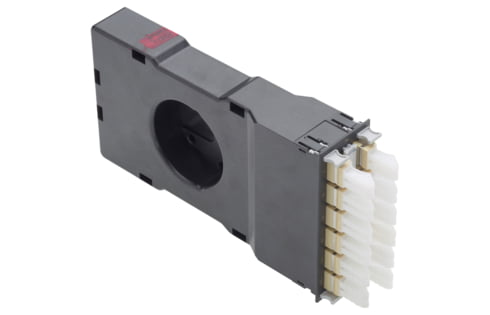

MPO Modul HD, MTP12-male - 12xE-2000™, G.652.D, APC/PC, type A, black (R807756)

Артикул: R807756 Категорія: Misc

Slide-in unit, radius limiter radius 30 mm, labeling strips and installation instructions
Plastic front panel equipped with 12 x E-2000™ adapters and fan-outs inserted, rear side one MTP12-male connector mounted

Environmental Characteristics

Operation temperature

10 °C to 60 °C / +50 °F to +140 °F

Mechanical Data

Dimensions	43.2 mm x 109.9 mm x 217.0 mm / 1.701 in x 4.327 in x 8.543 in (W x H x D)
Color Code RAL	9005 Jet black
Material	plastic: PC, fiber-glass reinforced, halogen-free

Technical Data

Conductor type FO	semi-tight buffer, dry
Fiber type	Singlemode (SM)
Fiber class	G.657.A1 (covers G.652.D, OS1, OS2)
Fiber diameter	n.a.
Number of connectors (A)	1
Number of connectors (B)	12
Connector type (A)	MTP12-male
Connector type (B)	E-2000™
Connector color (A)	black
Connector color (B)	blue
Color (B1)	blue
Lever- / frame-coding (B)	Color
Polishing plug (A)	APC 8°
Polishing plug (B)	PC
Protection class IP (A)	IP 20
Protection class IP (B)	IP 20
Return loss (RL)	≥ 45 dB
Insertion loss (IL) max. value	≤ 0.4 dB
Attenuation grade IL (A)	D
Wiring diagram	type A
Rack mounting version	slide-in unit
Adapter fastening method	end cap snap-in
Assembly	fully populated
Sleeve material	ceramic
Standard	MPO connectors acc. to IEC 61754-7-1 (MPO connector family - one fiber row) UL Listed
