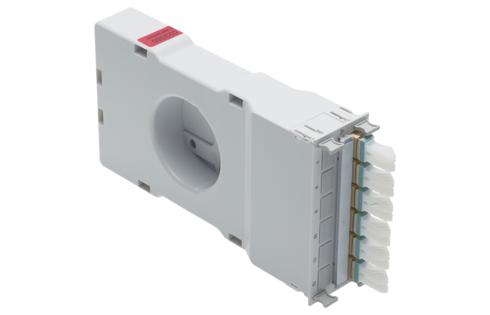

MPO Modul HD, MTP12-male - 6xLC-Duplex, G.652.D, APC/PC, type A, gray (R807751)

MPO Modul HD, MTP12-male - 6xLC-Duplex, G.652.D, APC/PC, type A, gray (R807751)

MPO Modul HD, MTP12-male - 6xLC-Duplex, G.652.D, APC/PC, type A, gray (R807751)

Designed for 19" 1U HD patch panel.

Connectivity method: type A.

Артикул: R807751 Категорія:

Scope of supply

  • Slide-in unit, radius limiter radius 30 mm, labeling strips and installation instructions

  • Plastic front panel equipped with 6 x LC-Duplex adapters and fan-outs inserted, rear side one MTP12-male connector mounted

Environmental Characteristics

Operation temperature

10 °C to 60 °C / +50 °F to +140 °F

Mechanical Data


43.2 mm x 109.9 mm x 217.0 mm / 1.701 in x 4.327 in x 8.543 in (W x H x D)

Color Code NCS

S 2502-B


plastic: PC, fiber-glass reinforced, halogen-free

Technical Data

Conductor type FO

semi-tight buffer, dry

Fiber type

Singlemode (SM)

Fiber class

G.657.A1 (covers G.652.D, OS1, OS2)

Fiber diameter


Number of connectors (A)


Number of connectors (B)


Connector type (A)


Connector type (B)


Connector color (A)


Connector color (B)


Polishing plug (A)

APC 8°

Polishing plug (B)


Protection class IP (A)

IP 20

Protection class IP (B)

IP 20

Return loss (RL)

≥ 45 dB

Insertion loss (IL) max. value

≤ 0.4 dB

Attenuation grade IL (A)


Wiring diagram

type A

Rack mounting version

slide-in unit

Adapter fastening method

end cap snap-in


partly populated

Sleeve material



UL Listed

acc. to IEC 61754-15

acc. to DIN EN 186270

MPO Modul HD front populated with 6 LC-Duplex adapters (split sleeve ceramic), at the back mounted with one MTP12-male adapter (type A), with 12-faser fan-outs, SM 9 µm G.652.D/G.657.A1 (OS1, OS2), assembly class in acc. with IEC 61753-1; the wiring inside the module is straight, key up to key down (according to method A from standard TIA 568-C); geometrical specifications of MPO (MTP) connectors in acc. with IEC 61754-7; incl. radius limiter at radius 30 mm and hold-down cross, fully populated, plastic front panel featuring per-numbered ports, tool-free locking and unlocking system and offering individual labeling options.
Dimensions: 43.2 x 109.9 x 217 mm (W x H x D)
Material: module and front panel: plastic (PC, fiber-glass reinforced, halogen-free, UL 94 V-0)
Color: module and front panel: light gray (NCS 1005-R80B)
