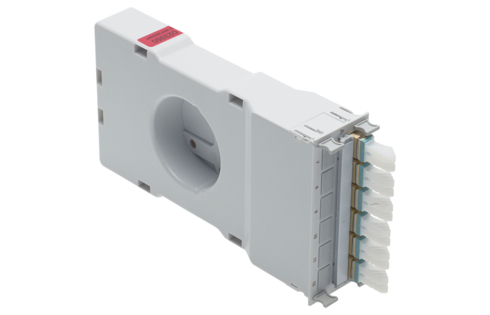

MPO Modul HD, MTP12-male - 6xLC-Duplex, OM4, PC/PC, type A, gray (R807750)

Name: MPO Modul HD, MTP12-male - 6xLC-Duplex, OM4, PC/PC, type A, gray (R807750) - ДП "Сінергія"
SKU: R807750

Designed for 19" 1U HD patch panel.

Connectivity method: type A.

Артикул: R807750 Категорія: Misc

Slide-in unit, radius limiter radius 30 mm, labeling strips and installation instructions
Plastic front panel equipped with 6 x LC-Duplex adapters and fan-outs inserted, rear side one MTP12-male connector mounted

Environmental Characteristics

Operation temperature

10 °C to 60 °C / +50 °F to +140 °F

Mechanical Data

Dimensions	43.2 mm x 109.9 mm x 217.0 mm / 1.701 in x 4.327 in x 8.543 in (W x H x D)
Color Code NCS	S 2502-B
Material	plastic: PC, fiber-glass reinforced, halogen-free

Technical Data

Conductor type FO	semi-tight buffer, dry
Fiber type	Multimode (MM)
Fiber class	OM4
Fiber diameter	G50 / 125 µm
Number of connectors (A)	1
Number of connectors (B)	6
Connector type (A)	MTP12-male
Connector type (B)	LC-Duplex
Connector color (A)	black
Connector color (B)	heather violet
Polishing plug (A)	PC
Polishing plug (B)	PC
Protection class IP (A)	IP 20
Protection class IP (B)	IP 20
Return loss (RL)	≥ 35 dB
Insertion loss (IL) max. value	≤ 0.35 dB
Attenuation grade IL (A)	Cm
Wiring diagram	type A
Rack mounting version	slide-in unit
Adapter fastening method	end cap snap-in
Assembly	partly populated
Sleeve material	ceramic
Standard	MPO connectors acc. to IEC 61754-7-1 (MPO connector family - one fiber row) UL Listed
