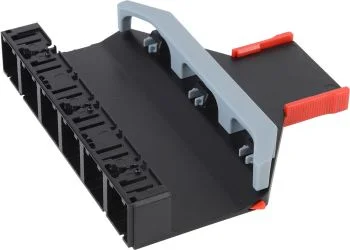

Netscale 48 cassette Cu 6x special, empty, unshielded, black (R868292)

Name: Netscale 48 cassette Cu 6x special, empty, unshielded, black (R868292) - ДП "Сінергія"
SKU: R868292

Netscale 48 cassette Cu 6x special, empty, unshielded, black (R868292)

Netscale 48 – The most versatile Mixed-Media Patch Panel on the market with thoughtful cable management system.

Артикул: R868292 Категорія: Netscale 48 Inserts

The Netscale 48 panel is part of the Netscale family from Reichle & De-Massari AG, a mixed-media, high-density, versatile and modular fibre and copper management solution for customers who demand fast, simple and reliable MACs (moves add and changes) and cable management, while expecting an attractive cost-benefit ratio and a future-proof design.

Scope of supply

1 x Netscale 48 Copper Cassette empty unshielded

Environmental Characteristics

Operation temperature

-10 °C to +60 °C / +14 °F to +140 °F

Mechanical Data

Dimensions	108.0 mm x 18.8 mm x 103.0 mm / 4.252 in x 0.74 in x 4.055 in (W x H x D)
Color Code RAL	9005 Jet black
Material	PC + ABS halogen-free, UL 94 V-0

Technical Data

Capacity (ports)	6
Standard	Protection class: IP20 acc. to IEC 60529

Cassette for up to 6 copper connection modules EL or ISO with "Special" locking, unshielded with click-in cable guide. Usable in straight or angled patch panel.

Material: Polycarbonate + ABS, black RAL 9005

Manufacturer: R&M

Type: 1 x R868292
