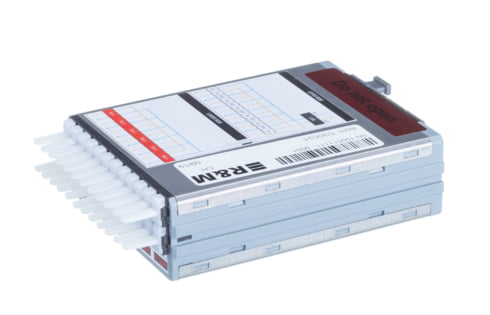

Netscale 6 TAP 50:50 MM MPO-LC (R835031)

Netscale 6 TAP 50:50 MM MPO-LC (R835031)

Netscale 6 TAP 50:50 MM MPO-LC (R835031)

Designed for Netscale

Splitting ratio between active and monitor-signal: 50% : 50%

Артикул: R835031 Категорія:

The Traffic Access Point (TAP) Module is part of the Netscale family and compatible with the same Netscale as a standard module, allowing for scalable port diagnostic capability. Monitor traffic is sent to test equipment to provide visibility into network traffic via real-time acquisition of error, performance, and utilization data. The Netscale TAP Module uses an advanced optical splitter to reduce insertion loss and modal noise and enable high performance applications such as 10G Ethernet and 16G Fibre Channel

Mechanical Data


80.0 mm x 105.0 mm x 30.0 mm / 3.15 in x 4.134 in x 1.181 in (W x H x D)

Color Code RAL

7000 Squirrel gray


plastic: PC, fiber-glass reinforced, halogen-free

Technical Data

Fiber class


Connector type (A)

MPO, female

Connector color (A)


Polishing plug (A)


Insertion loss (IL) max. value

≤ 4.6 dB

Wiring diagram

type A

Rack mounting version

slide-in unit


Protection class: IP20 acc. to IEC 60529

Інструкції з встановлення
