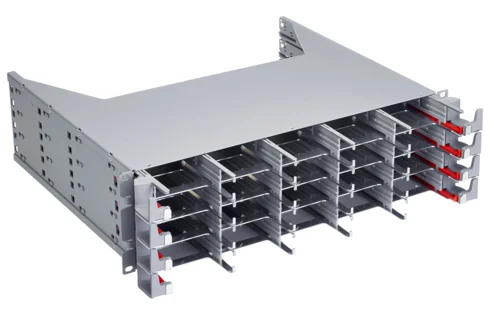

The Netscale housing is mountable in 19-in racks or cabinets and provides user-friendly and flexible ultra high-density connectivity when combined with Netscale modules, cassettes, harnesses, trunks and Netscale patch cords. The elaborate design of Netscale housings includes drawers receiving modules or cassette from either the front or the rear. A fundamental design feature is the break-up of traditional RU-sizing. Netscale drawers are only 0.75RU high which allows the 3RU housing to host four of them and hence, increase the density.
Housing 3U for any server rack, network racks and open frames
DESCRIPTION | VALUE/VALUE RANGE |
---|---|
Standard / norm | Protection class: IP20 acc. to IEC 60529 |
DESCRIPTION | VALUE/VALUE RANGE |
---|---|
Dimensions | 482.2 mm x 132.5 mm x 435.1 mm / 18.984 in x 5.217 in x 17.13 in (W x H x D) |
Color Code RAL | 7000 Squirrel gray |
Material | Steel (DC01 electrogalvanized & HC420LA) |
DESCRIPTION | VALUE/VALUE RANGE |
---|---|
Operation temperature | -10 °C to +60 °C / +14 °F to +140 °F |
Highest port density available
Industry leading space at front for patch cord guiding and handling
Two variants optimizing width versus optimizing cable management
Support for trunk installation at left, right and rear side
Easy one-person installation
Support for superior cable manager simplifying installation, and operation (Rear Cabling Manager RCM)
Type | Image | Description | Product No. | |
---|---|---|---|---|
Optional accessories |
Netscale RCM Tray | R815875 | ADD TO WISH LISTREMOVE FROM WISH LIST | |
Optional accessories |
Netscale Cable Manager 3U | R826610 | ADD TO WISH LISTREMOVE FROM WISH LIST | |
Optional accessories |
Netscale Support Bar 800 | R826607 | ADD TO WISH LISTREMOVE FROM WISH LIST | |
Optional accessories |
FCA Divider Clip, 25xsmall | R827350 | ADD TO WISH LISTREMOVE FROM WISH LIST | |
Optional accessories |
FCA Divider Clip, 100xsmall | R827351 | ADD TO WISH LISTREMOVE FROM WISH LIST | |
Optional accessories |
FCA Divider Clip, 25xmid-size | R827352 | ADD TO WISH LISTREMOVE FROM WISH LIST | |
Optional accessories |
Netscale Rear Cabling Manager | R827348 | ADD TO WISH LISTREMOVE FROM WISH LIST |
