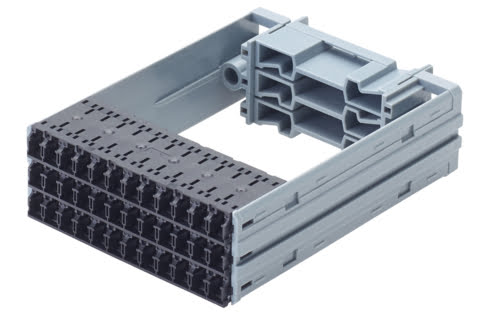

Netscale adapter cassettes are pass-through inserts with LC-Duplex adapters. The LC cables connect at the rear of the adapter cassettes. From the front side, various options are possible, ranging from LC-duplex patch cords for equipment connections over harness cables to cross-connection used in main distribution areas. Like Netscale modules, cassettes can be installed from the front or rear of any Netscale housing.
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Protection class IP | IP 20 |
| Rack mounting version | Rack insert component Cassette fitting to Netscale family of housings |
| Connector type (A) | LC-Duplex |
| Connector color (A) | blue |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Dimensions | 80.0 mm x 105.0 mm x 30.0 mm / 3.15 in x 4.134 in x 1.181 in (W x H x D) |
| Color Code RAL | 7000 Squirrel gray |
| Material | plastic: PC, fiber-glass reinforced, halogen-free |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Operation temperature | -10 °C to +60 °C / +14 °F to +140 °F |
