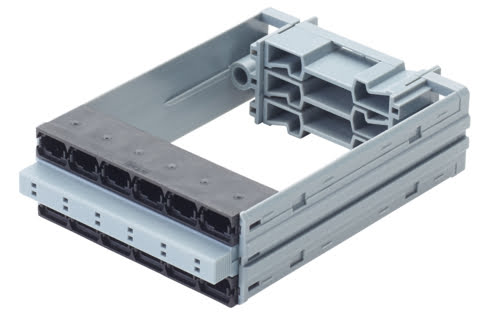

Netscale adapter cassettes are pass-through inserts with MPO adapters. The MPO cables connect at the rear of the adapter cassettes. From the front side, various options are possible, ranging from MPO patch cords for equipment connections over harness cables to cross-connection used in main distribution areas. Like Netscale modules, cassettes can be installed from the front or rear of any Netscale housing.
The cassette is compatible to R&MinteliPhy.
Slide-in unit,
labeling strips
installation instructions
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Protection class IP | IP 20 |
| Rack mounting version | Rack insert component Cassette fitting to Netscale family of housings |
| Connector type (A) | MPO |
| Connector color (A) | black |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Dimensions | 80.0 mm x 105.0 mm x 30.0 mm / 3.15 in x 4.134 in x 1.181 in (W x H x D) |
| Color Code RAL | 7000 Squirrel gray |
| Material | plastic: PC, fiber-glass reinforced, halogen-free |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Operation temperature | -10 °C to +60 °C / +14 °F to +140 °F |
