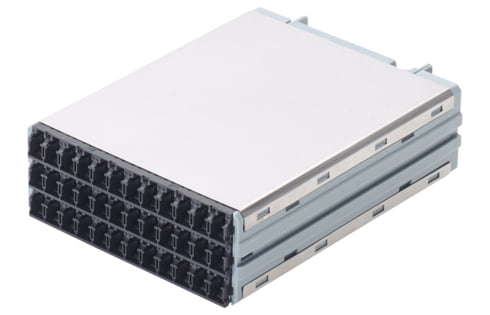

Netscale LC-Duplex to MPO modules provide the interface between the male MPO connectors on the trunk and the LC-Duplex patch cords that will then connect directly into the transceiver modules. The LC-Duplex ports feature integrated laser shutters that move out of the way when the connector is inserted. R&M’s Type S LC-Duplex to MPO modules ensure correct fi ber polarity while requiring just one type of patch cord on both ends of the link. The crossover of the fi bers for duplex signal transmission takes place within the module.
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm | MPO connectors acc. to IEC 61754-7-1 (MPO connector family - one fiber row) |
| Protection class IP | IP 20 |
| Number of connectors (A) | 3 |
| Wiring diagram | type S |
| Assembly | fully populated |
| Rack mounting version | slide-in unit |
| Capacity (ports) | 18 |
| Connector type (A) | Low-loss MPO Elite, female |
| Polishing plug (A) | PC |
| Connector color (A) | black |
| Adapter fastening method | end cap snap-in |
| Fiber type | multimode (MM) |
| Fiber class | OM4 |
| Conductor type | semi-tight buffer, dry |
| Fiber diameter | G50 / 125 µm |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Dimensions | 80.0 mm x 105.0 mm x 30.0 mm / 3.15 in x 4.134 in x 1.181 in (W x H x D) |
| Color Code RAL | 7000 Squirrel gray |
| Material | plastic: PC, fiber-glass reinforced, halogen-free |
