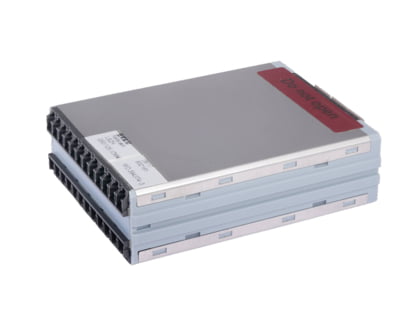

Slide-in unit,
labeling strips
installation instructions
| Dimensions | 80.0 mm x 105.0 mm x 30.0 mm / 3.15 in x 4.134 in x 1.181 in (W x H x D) |
| Color Code RAL | 7000 Squirrel gray |
| Material | plastic: PC, fiber-glass reinforced, halogen-free |
| Conductor type FO | semi-tight buffer, dry |
| Fiber type | Multimode (MM) |
| Fiber class | OM4 |
| Fiber diameter | G50 / 125 µm |
| Number of connectors (A) | 2 |
| Connector type (A) | MPO, female |
| Connector color (A) | black |
| Polishing plug (A) | PC |
| Return loss (RL) | ≥ 35 dB |
| Insertion loss (IL) max. value | ≤ 0.3 dB |
| Wiring diagram | type S+ |
| Rack mounting version | slide-in unit |
| Adapter fastening method | end cap snap-in |
| Assembly | partly populated |
| Capacity (ports) | 12 |
| Standard | MPO connectors acc. to IEC 61754-7-1 (MPO connector family - one fiber row) |
