Netscale MPO - LC-duplex 12 ports OM4 type S, R&MinteliPhy compatible (R832181)

Netscale MPO - LC-duplex 12 ports OM4 type S, R&MinteliPhy compatible (R832181)

Netscale MPO - LC-duplex 12 ports OM4 type S, R&MinteliPhy compatible (R832181)

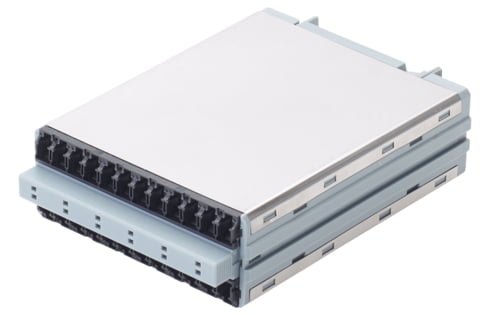

Netscale LC-Duplex to MPO modules provide the interface between the male MPO connectors on the trunk and the LC-Duplex patch cords that will then connect directly into the transceiver modules. The LC-Duplex ports feature integrated laser shutters that move out of the way when the connector is inserted. R&M’s Type S LC-Duplex to MPO modules ensure correct fi ber polarity while requiring just one type of patch cord on both ends of the link. The crossover of the fi bers for duplex signal transmission takes place within the module.

Артикул: R832181 Категорія:

Scope of supply

  • Slide-in unit,

  • labeling strips

  • installation instructions

Mechanical Data

Dimensions

80.0 mm x 105.0 mm x 30.0 mm / 3.15 in x 4.134 in x 1.181 in (W x H x D)

Color Code RAL

7000 Squirrel gray

Material

plastic: PC, fiber-glass reinforced, halogen-free

Technical Data

Conductor type FO

semi-tight buffer, dry

Fiber type

Multimode (MM)

Fiber class

OM4

Fiber diameter

G50 / 125 µm

Number of connectors (A)

2

Connector type (A)

MPO, female

Connector color (A)

black

Polishing plug (A)

PC

Return loss (RL)

≥ 35 dB

Insertion loss (IL) max. value

≤ 0.35 dB

Wiring diagram

type S

Rack mounting version

slide-in unit

Adapter fastening method

end cap snap-in

Assembly

partly populated

Capacity (ports)

12

Standard

MPO connectors acc. to IEC 61754-7-1 (MPO connector family - one fiber row)
