Overvoltage Protection Magazine with 3-Electrode-GDT, 230 V, FS, 10 pairs (R27411-20-230FS)

Overvoltage Protection Magazine with 3-Electrode-GDT, 230 V, FS, 10 pairs (R27411-20-230FS)

For interruption-free use with all VS Standard connection and disconnection modules.

Артикул: R27411-20-230FS

Scope of Supply

  • Overvoltage protection magazine for 2-electrode or 3-electrode GDTs

  • Equipped with 10 3-electrode gas discharge tubes with FS, 2 x 5 kA, 230 V

Technical Data

DESCRIPTION VALUE/VALUE RANGE
Protection class IP

IP 20

Assembly

fully populated

VS version

overvoltage protection magazine

VS system

VS Standard

Number of pairs 10
VS overvoltage protection with
VS overvoltage protection with failsafe with

Mechanical Data

DESCRIPTION VALUE/VALUE RANGE
Dimensions 35.0 mm x 106.0 mm x 11.3 mm / 1.378 in x 4.173 in x 0.445 in (W x H x D)
Color Code RAL

9005 Jet black

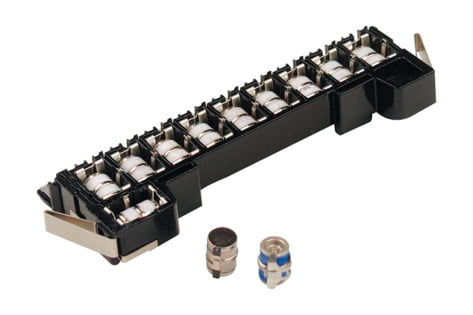

VS Standard overvoltage protection magazine for permanent personal and equipment protection, for interruption-free use with connection and disconnection modules, rear-mounted. Automatic ground contacting to back mount frame through spring contacts.

Equipped with 10 x 3-electrode gas discharge tubes, design H Ø-8 x 10 mm, 2 x 5 kA, 230V, with failsafe.

Features:

  • Dimensions: 35 x 106 x 11.3 mm (HxWxD)

  • Magazine body material: PBT, fiberglass reinforced, UL 94 V-0

  • Contact material: nickel silver (CuNi 18 Zn 20)

  • Color: jet black (RAL 9005)
