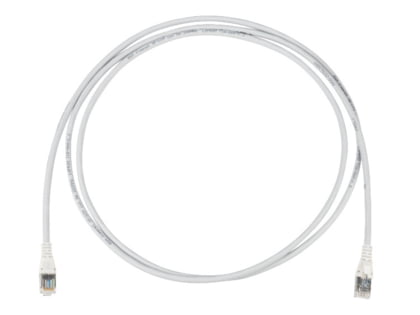

Patch Cord Cat. 5e, SF/UTP, 4P, LSFRZH, gray, RJ45/s-RJ45/s, 20.0 m (R305049)

Name: Patch Cord Cat. 5e, SF/UTP, 4P, LSFRZH, gray, RJ45/s-RJ45/s, 20.0 m (R305049) - ДП "Сінергія"
SKU: R305049

Patch Cord Cat. 5e, SF/UTP, 4P, LSFRZH, gray, RJ45/s-RJ45/s, 20.0 m (R305049)

Cable identification: SF/UTP

Outer jacket: LSFRZH

Conductor diameter copper strand: AWG 26/7

Screened in pairs: no

Overall screen: copper braid + AL/foil

Outer diameter: 5.5 mm

Артикул: R305049 Категорія: Patch Cords - Cat. 5e

Mechanical Data

Color Code RAL	7035 Light gray
Cable length	20 m

Technical Data

Wire type	stranded wire
Number of wires	8
Cable type	Patch cord, polarity A-B
Category	Cat. 5e
Jacket material	LSFRZH
Cable jacket characteristics	zero-halogen
Stranding	4 pairs
Wire diameter	AWG 26/7
Shielding	SF/UTP
Cable overall diameter	5.8 mm
Category connector (A)	Cat. 5e
Category connector (B)	Cat. 5e
Connector type (A)	RJ45
Shielding connector (A)	shielded
Shielding connector (B)	shielded
PoE	Yes
Connector class	connector
Wiring diagram	TIA-568A
Standard	Compliant with Cat. 5e requirements of EN 50173 Compliant with Cat. 5e requirements of ISO/IEC 11801 Compliant with Cat. 5e requirements of EN 50168 Compliant with Cat. 5e requirements of TIA/EIA 568.2-D Meet test specifications of TIA/EIA 568.2-D Fulfilled the standard IEC 61935-2 With R&M RJ45 connectors in acc. with IEC 60603-7 series

Flexible cable, SF/UTP, 4 x 2 x AWG 26/7, LSFRZH, color gray (RAL 7035). Low-smoke in acc. with IEC 61034, flame-retardant in acc. with IEC 60332-3C and halogen-free in acc. with IEC 60754-1. Halogen-free and heavy-metal free in acc. with EU directives RoHS 2.

Mounted on both sides with

RJ45 connector in acc. with IEC 60603-7. Strain-relief function in acc. with TIA 568-C.

Comply with the requirements of Cat.5e of the relevant cabling standards ISO/IEC 11801 ed. 2.2, June 2011 and EN 50173-1, May 2011 (DIN EN 50173-1),EN 50168 and TIA 568-A/B. Also fulfils testing specifications of TIA 568-B.2-1 (Patch Cord Qualification Test).

Optional:

Visual coding, mechanical coding and lock protection.
