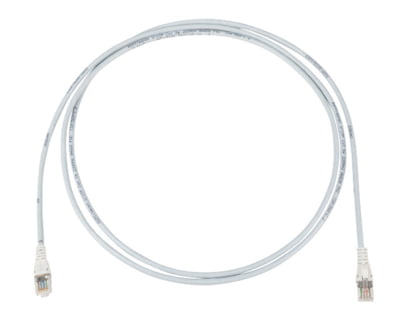

Patch Cord Cat. 5e, U/UTP, 4P, PVC, gray, RJ45/u-RJ45/u, 1.5 m (R305019)

Patch Cord Cat. 5e, U/UTP, 4P, PVC, gray, RJ45/u-RJ45/u, 1.5 m (R305019)

Patch Cord Cat. 5e, U/UTP, 4P, PVC, gray, RJ45/u-RJ45/u, 1.5 m (R305019)

Cable identification: U/UTP

Outer jacket: PVC

Conductor diameter copper strand: AWG 26/7

Screened in pairs: no

Overall screen: no

Outer diameter: 6.0 mm

Артикул: R305019 Категорія:
Mechanical Data

Color Code RAL

7035 Light gray

Cable length

1.5 m

Technical Data

Wire type

stranded wire

Number of wires

8

Cable type

Patch cord, polarity A-B

Category

Cat. 5e

Jacket material

PVC

Cable jacket characteristics

Cable, metal-free

Stranding

4 pairs

Wire diameter

AWG 26/7

Shielding

U/UTP

Cable overall diameter

6.0 mm

Category connector (A)

Cat. 5e

Category connector (B)

Cat. 5e

Connector type (A)

RJ45

Shielding connector (A)

unshielded

Shielding connector (B)

unshielded

PoE

Yes

Connector class

connector

Wiring diagram

TIA-568A

Standard

Compliant with Cat. 5e requirements of EN 50173

Compliant with Cat. 5e requirements of ISO/IEC 11801

Compliant with Cat. 5e requirements of EN 50168

Compliant with Cat. 5e requirements of TIA/EIA 568.2-D

Meet test specifications of TIA/EIA 568.2-D

Fulfilled the standard IEC 61935-2

With R&M RJ45 connectors in acc. with IEC 60603-7 series

Flexible cable, U/UTP, 4 x 2 x AWG 26/7, PVC, color gray (RAL 7035). Heavy-metal free in acc. with EU directives RoHS 2.

Mounted on both sides with

RJ45 connector in acc. with IEC 60603-7. Strain-relief function in acc. with TIA 568-C.

Comply with the requirements of Cat.5e of the relevant cabling standards ISO/IEC 11801 ed. 2.2, June 2011 and EN 50173-1, May 2011 (DIN EN 50173-1), EN 50168 and TIA 568-A/B. Also fulfils testing specifications of TIA 568-B.2-1 (Patch Cord Qualification Test).

Optional:

Visual coding, mechanical coding and lock protection.
