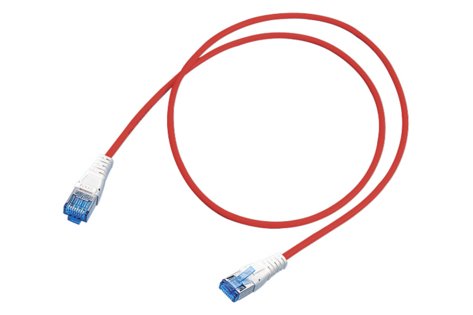

Patch Cord Cat. 6, S/FTP, 4P, LSFRZH, red, RJ45/s-RJ45/s, 1.0 m (R313321)

Name: Patch Cord Cat. 6, S/FTP, 4P, LSFRZH, red, RJ45/s-RJ45/s, 1.0 m (R313321) - ДП "Сінергія"
SKU: R313321

Patch Cord Cat. 6, S/FTP, 4P, LSFRZH, red, RJ45/s-RJ45/s, 1.0 m (R313321)

Cable identification: S/FTP

Outer jacket: LSFRZH

Conductor diameter copper strand: AWG 26/7

Screened in pairs: AL/foil

Overall screen: copper braid

Outer diameter: max. 6.2 mm

Артикул: R313321 Категорія: Patch Cords - Cat. 6

Mechanical Data

Color Code RAL	3018 Strawberry red
Cable length	1 m

Technical Data

Wire type	stranded wire
Number of wires	8
Cable type	Patch cord
Category	Real10 Cat. 6
Jacket material	LSFRZH
Cable jacket characteristics	Cable, metal-free flame retardant zero-halogen
Stranding	4 pairs
Wire diameter	AWG 26/7
Shielding	S/FTP
Cable overall diameter	6.2 mm
Category connector (A)	Real10 Cat. 6
Category connector (B)	Real10 Cat. 6
Connector type (A)	RJ45
Shielding connector (A)	shielded
Shielding connector (B)	shielded
PoE	Yes
Connector class	connector
Wiring diagram	TIA-568A
Standard	Compliant with Cat. 6 Class E (250 MHz) requirements: ISO/IEC 11801 Compliant with Cat. 6 component standard IEC 60603-7-4 Compliant with Cat. 6 component standard IEC 60603-7-5 Fulfilled the standard IEC 61935-2

Flexible cable, S/FTP, 4 x 2 x AWG26/7, LSFRZH,

3018 Strawberry red

. Low-smoke in acc. with IEC 61034, flame-retardant in acc. with IEC 60332-3C and halogen-free in acc. with IEC 60754-1. Halogen-free and heavy-metal free in acc. with EU directives RoHS 2.

Mounted on both sides with

RJ45 connector compliant with Cat. 6 component standard. Key standard: IEC 60603-7 RJ45 category 6; IEC 60603-7-1 to 5. Strain-relief function in acc. with TIA 568-C.

Complies with requirements ofCat. 6 for the establishing of transmission links of class E and class EA in acc. with ISO/IEC 11801 ed. 2.2, June 2011 and EN 50173-1, May 2011 (DIN EN 50173-1). Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four.

Optional:

Visual coding, mechanical coding and lock protection.
